Advanced Collision Avoidance With Real-time Vessel Traffic Information
GPS data multiplex
When connected a GPS receiver to the MXA-5000, GPS position information such as RMC, GGA, GNS and GLL formats can be multiplexed with AIS data (VDM format) and simplifies wiring.

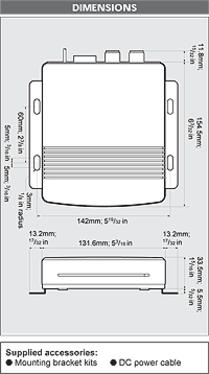

Compact size and light weight body
The MXA-5000 is only 132(W)×34(H)×155(D)* mm and weighs only 400g* for easy and flexible installation.
*Mounting bracket is not included.
What is AIS?
Icom's MXA-5000 AIS (Automatic Identification System) receiver will pick up real- time transmissions from vessels that use an AIS transporter. Such transponders are now required for SOLAS vessels by SOLAS regulations.
The AIS transponder sends accurate navigation information such as:
Static information — vessel call sign, name MMSI number, dimensions and type
Voyage-related information — draft, cargo type, destination and estimated time of arrival
Dynamic information — time in universal time, coordinated, latitude/longitude position, course over ground, speed over ground, heading, rate of turn and navigational status
Please refer to the Navigation Center for more information

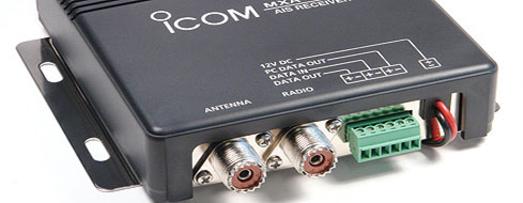

MXA-5000
Automatic Identification System
Dual channel receive capability
The MXA-5000 receives both Ch. 87B (161.975MHz) and Ch. 88B (162.025MHz) simultaneously. This dual channel receive makes the MXA-5000 more flexible for obtaining AIS information from AIS transponders that operate on only one channel. In addition, the MXA-5000 also receives both Class A and Class B AIS data.
Dual mode data output

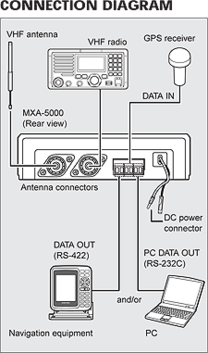

The MXA-5000 has two data output. One is RS-422 for connection with equipment such as marine radar or GPS chart plotter. Those equipments which accept the VDM sentence format will show the AIS data on the display. The second is RS-232C for PC connection. When using with AIS plotter software*, the MXA-5000 allows you to monitor other vessel traffic on your PC.
*Not supplied from Icom.
Built-in antenna splitter to share one antenna
The MXA-5000 can be installed between a VHF antenna and a VHF radio. While receiving a VHF radio signal*, the MXA-5000 receives AIS data. When you transmit from the connected VHF radio, the Tx signal bypasses the MXA-5000 to protect the internal circuit.
*Insertion loss : 3.5dB (approx.)
General
Frequency coverage 161.975 MHz (Ch 87B)
168.025 MHz (Ch 88B)
Simultaneous receive
Receive emission designator 16KOFD (GMSK)
Antenna impedence 50Ω
Useable temperature range
-20°C to +60°C
-4°F to +140°F
Power supply requirement
12.0V DC (10.8 - 15.6V)
Current drain 0.25A
Weight (approx.) 400g; 14.1oz
Mounting brackets attached 460g; 1.0lb
Receiver
Sensitivity
- 116dBm typ.
Adjacent Ch selectivity More than 70dB
Spurious response
More than 70dB
Intermodulation More than 64dB
Hum ad noise ratio More than 40dB
Conducted spurious emissions
Less than -57dBm
All stated specifications are subject to change without notice or obligation. Measurements are made in accordance with IEC 62287-1.
Data Interface
Data input interface IEC 61162-1:2000 (4,800bps)
Sentence format RMC, GGA, GNS, GLL
Input level Less than 2mA (when 2V applied)
Data output interface IEC 61162-2 (38, 400bps)
To navigation equipment RS-422 balanced
Sentence format VDM
Output level 5V, 40mA Max.
To PC RS-232C unbalanced
Sentence format VDM
Output level ±5V, ±35mA typ.
