Main features
- 0.005-3335MHz wideband coverage
- +40dBm 3rd order intercept point and 109dB dynamic range*
- *At 14.1MHz
- Multi-function high performance spectrum scope
- ±0.05ppm high frequency stability
- ±3dB* accuracy of dBµ/dBµ(emf) /dBm meter
- *10 to 70dBµ signal between 100kHz to 3335MHz at 25°C
- SSB/CW/AM mode auto tuning function
- Optional P25 digital mode reception
- Professional grade operation, functionality and build
Basic Performance
Wideband coverage

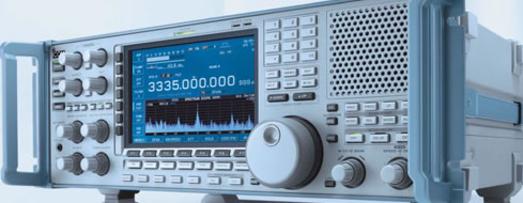

The IC-R9500 covers 0.005-3335MHz in SSB, AM, FM (WFM), CW, FSK and P25* modes. It is suitable for a wide variety of radio monitoring and listening activities.
* Optional UT-122 digital unit is required.
Superb receiver performance
The IC-R9500 achieves amazing performance by using a D-MOS FET array in the 1st mixer (below 30MHz) and an excellent IMD roofing filter. The IC-R9500 has +40dBm IP3 and 109dB dynamic range at 14.1MHz. IP3 performance is +9.8dBm at 50MHz and +6.2dBm at 620MHz (+5dBm (typical) from 30MHz to 3335MHz).
