The power you need... to succeed!
Overview

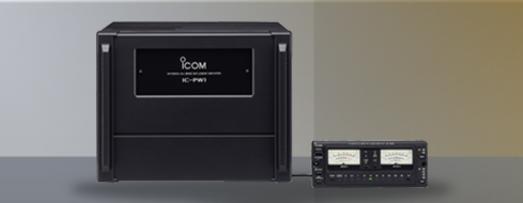

IC-PW1
Linear Amplifier
Wide frequency coverage with 1 KW output*
All HF bands plus 50 MHz are covered. The IC-PW1 provides a stable, clean and low distortion 1 kW from 1.8 MHz to 50 MHz*. In addition, full duty cycle (even during more demanding RTTY or SSTV operation) and full break -in operation are possible. Great for DX'peditions or contest operation.
*Guaranteed within amateur bands only.
Wide ALC adjustable range
Internal circuitry allows the ALC to be adjusted over a wide range. This means that the IC-PW1 can be used with almost any HF, 6 m or HF/6 m rigs - not only Icom rigs*
*Ask your dealer about usable exciters.
Compact body
Dimensions, including amplifier, power supply, tuner and controller, are only 350(H) x 269(W) x 378(D)mm* And, because the controller is detachable, the IC-PW1 can be installed almost anywhere in your shack.
*625⁄32(H) x 225⁄32(W) x 91⁄16 in.
Other outstanding features
- Automatic antenna tuner built-in
- Automatic AC input voltage selector is employed
- Current (Ip), Voltage (Vp), temperature, SWR and output power protectors are available
