Specifications

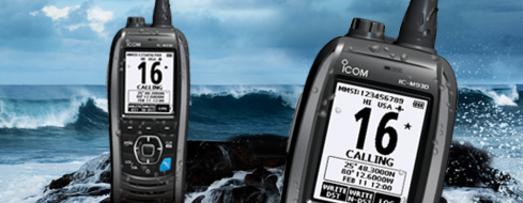

Everything about the M93D radio is professional and stylish with an easy-to-use interface. The M93 is slender, has a 2-tone body, is feature rich and smart. Enjoy Icom’s continued tradition of Float’n Flash, AquaQuake™ and Active Noise Cancelling. The M93D will keep you safe with integrated GPS - providing location, bearing and speed. Plus this handheld meets ITU-R M493-13 Class D DSC with a dedicated built-in DSC receiver for CH 70. Icom’s new M93D is built for the serious boater.
Output power:
5W
Battery life:
1570mAh Li-ion battery, up to 9 hours
Typical operation; Tx:Rx:Stand-by duty ratio = 5:5:90
Waterproof rating:
IPX7
User friendly
A flat sheet keypad not only makes the radio slim, but also provides positive click feeling. The M93D offers consistent and predictable operation based on the Icom’s common Marine Family User Interface. You can quickly access the required function by using soft keys. The most often-used 19 functions can be assigned at the bottom of the display and are toggled with the left and right keys.
Large LCD
The M93D’s large, full dot-matrix display clearly shows information. The large font and identifiable icons make easy to read. In addition, the display is high contrast and visible under direct sunlight.
Integrated GNSS receiver
Integrated GNSS (Global Navigation Satellite System) receiver provides your location, bearing and speed with fast-setup time and pinpoint accuracy by using information from GPS, GLONASS, QZSS and SBAS (WAAS/EGNOS/MSAS). Using GNSS memory data, the M93D can fix positioning within 8–12 seconds after the radio is powered ON. Acquired position information can be used for DSC calls and navigation to waypoints.
Additional features
Built-in Class D DSC. A red rear panel button allows for distress calls
Navigation function from current position to the specified waypoint
50 waypoint memories with alphanumeric name for navigation
Weather channel receive with alert function
Dual/Tri-watch function for monitoring CH16 and/or call channel
Battery indicator shows remaining battery power in four levels
Favorite channel function for quick access to often used functions
AquaQuake™ draining function clears water away from the speaker grill
Float’n Flash allows the user to see the radio when dropped in the water
Active Noise Canceling digitally removes background noise from both transmit and receive audio
Bring it On – Built for the Serious Boater
IC-M93D
Features
General
Frequency Range
156.025–157.425 MHz
156.050–163.275 MHz
156.525MHz
Usable channel groups INT, USA, CAN, WX channels
Type of emission 16K0G3E (FM), 16KOG2B (DSC)
Current drain (at 7.4V DC)
Tx (5.0W/1.0W output) 1.5A/700mA (approx.)
Rx (Inter SP/Exter SP Max. audio) 450mA/250mA (approx.)
Operating temperature range
-20°C to +60°C; -4°F to +140°F
Antenna Impedance 50Ω
Dimensions (W×H×D)
57.0×144.6×38.5mm;
2.24×5.69×1.52in
Weight (approx.) 10.58oz
Transmitter
Output power (Hi/Low)
5W/1W
Max. frequency deviation ±5 kHz
Frequency stability ±10ppm
Spurious emissions –68dBc typ.
Receiver
Sensitivity (at 12dB SINAD)
DSC receiver (at 1% BER) 0.25µV typical
0.56μV emf typical
Squelch sensitivity (Threshold)
0.25µV typ.
Adjacent Channel Selectivity
DSC receiver (at 1% BER) 70dB typical
73dBμ emf typical
Spurious response
DSC receiver (at 1% BER) 70dB typical
73dBμ emf typical
Intermodulation
DSC receiver (at 1% BER) 70dB typical
68dBμ emf typical
Hum and noise ratio 40dB typical
Audio output power
Internal speaker
External speaker (at 10% distortion)
900mW typical (12Ω load)
350mW typical (8Ω load)
Measurements made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications & IP Rating
Standard MIL 810 G
Method Proc
Low Pressure 500.5 I, II
High Temp. 501.5 I, II
Low Temp. 502.5 I, II
Temp. Shock 503.5 I-C
Solar Radiation 505.5 I
Rain Blowing/Drip 506.5 I, III
Humidity 507.5 II
Salt Fog 509.5 –
Dust Blowing 510.5 I
Immersion 512.5 I
Vibration 514.6 I
Shock 516.6 I, IV
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Ingress Protection Standard
Water IPX7 (Waterproof protection)
Supplied Accessories
AC adapter, BC-123SA
Battery charger, BC-220
Battery pack, BP-285
Cigarette lighter cable, CP-25H
Belt clip, MB-133
Antenna, FA-SC59V
Hand strap
