General
Frequency Range
156.050–163.275 MHz
Usable channels INT, USA, CAN, WX channels
Type of emission 16K0G3E (FM)
Current drain (at 7.4V DC)
Tx (at 6W output)
Internal speaker 1.5A typical
External speaker 300mA typ.
Power save 200mA typ.
10mA typ.
Operating temperature range
-20°C to +60°C; -4°F to +140°F
Antenna Impedance 50Ω (STUD)
Dimensions (W×H×D)
52.5×125×30 mm
2.07×4.92×1.18 in
Weight (approx.) 295g; 10.4oz (With BP-252, FA-SC58V and MB-109)
Transmitter
Output power (Hi/Low)
6W (High),1W (Low)
2W (High, with alkaline cells), 1W low
Max. frequency deviation ± 5 kHz
Frequency error ±10ppm
Audio harmonic distortion Less than 10% (at 60% dev.)
Spurious emissions –68dBc
Adjacent channel power 70dB
Audio harmonic distortion 10% (at 60% dev.)
Residual modulation 40dB
Receiver
Sensitivity (at 12dB SINAD) 0.25µV typical
Squelch sensitivity
0.35µV typ. (at threshold)
Adjacent Channel Selectivity 70dB typical
Spurious response 70dB typical
Intermodulation Rejection 70dB typical
Hum and noise ratio 40dB typical
Audio output power (at 10% distortion)
Internal speaker
External speaker
700mW typ. (16Ω load)
350mW typ. (8Ω load)
Applicable U.S. Military Standards
IPX8 (Waterproof protection)
Standard MIL 810 F
Method Proc
Low Pressure 500.4 I, II
High Temp. 501.4 I,II
Low Temp. 502.4 I, II
Solar Radiation 505.4 I
Humidity 507.4 —
Temperature Shock 503.4 I
Vibration 514.5 I
Shock 516.5 I
Also meets equivalent MIL-STD-810-C, -D and -E.
Measurement made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.
Supplied AccessoriesCigarette lighter cable, CP-25H
Rapid charger, BC-210
Handheld strap
Belt clip, MB-103
AC adapter, BC-123SA
Battery pack, BP-245N
Antenna, FA-S59V

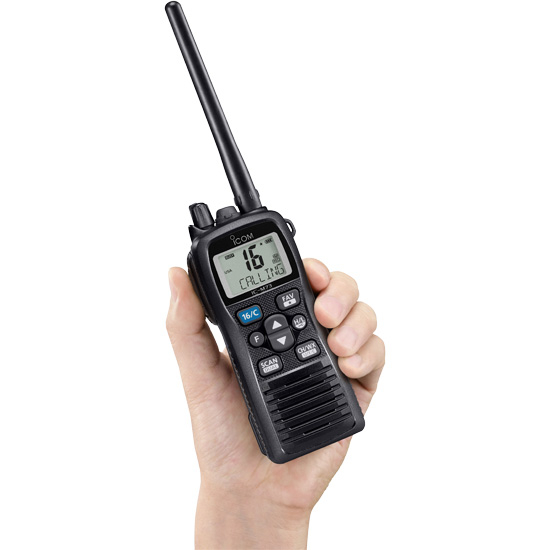

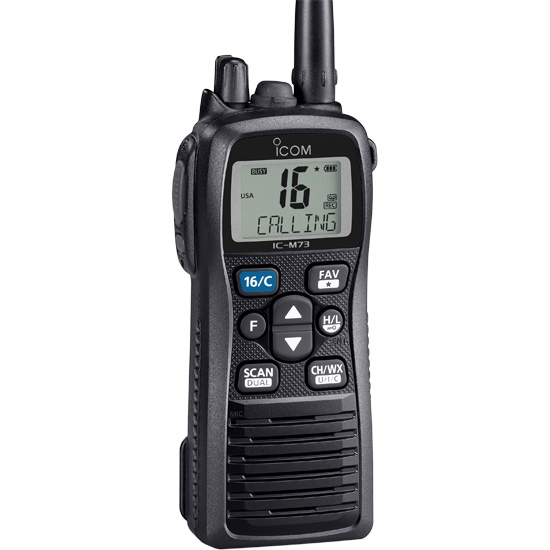

M73 Features:
Slim, hourglass body and wide viewing angle LCD
The M73 has a stylish, ergonomic design. A durable and rugged body provides for user-friendly operation and long life. A wide viewing angle, high intensity LCD offers bright, easy to read characters.
IPX8 Submersible Plus™
The M73 continues to offer Icom’s best waterproof protection. The radio has been tested to survive after being submersed in 1.5m (4.9ft) depth of water for 30 minutes.
700mW Loud audio
The M73 uses a BTL (bridge-tied load) amplifier that doubles the audio output. Its internal speaker delivers a loud 700mW audio output with clear sound.
6W RF Output power
The M73’s 6 Watts of transmit power will provide extended communication range for the user. A large capacity Lithium-Ion battery allows for 16 hours of operation, under normal conditions*.
*Typical operation with 5:5:90 duty ratio. 18 hours for basic version.
M73PLUS Features:
Active noise cancelling technology
The built-in bidirectional active noise cancelling reduces background noise to up to 90% and improves both your transmitted voice and incoming call. You will hear better and clearer!
Bass boost function
The signal processing technology emphasizes low-pitched sound to provide a rich bass sound for both transmit and receive signals.
Last call voice recording
The last call voice recording function automatically saves the last incoming call for 1 minute. You can also start recording manually. You will not miss an important call.
M73 and M73PLUS additional Features:
Additional features include
AquaQuake™ water draining function
Dual/Tri-Watch function for monitoring Channel 16 and/or call channel
4 level battery indicator
Favorite channel and tag scan functions
Rapid desktop charger, BC-210, and cigarette lighter cable, CP-25H, are supplied
Optional waterproof speaker-microphones, HM-167 and HM-202
Auto power save function
Basic version (no voice recorder, no noise canceller and no bass boost function) available for limited markets.
