Specifications
IC-M400BB

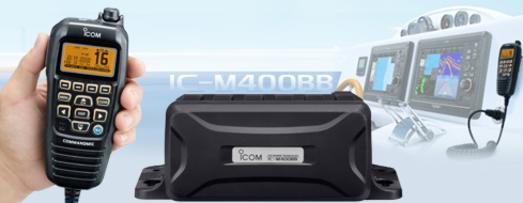

Icom’s M400BB is perfect for boats that need a radio but don’t have room on the helm. The M400BB consist of a two-piece, black box configuration. Install the full RF black box unit in an out-of-sight place and connect the COMMANDMICIV™, HM-195 to the cockpit or fly bridge. The HM-195 allows operation of all radio functions including DSC, radio, foghorn and hailer horn. The HM-195 also utilizes the same user soft key interface used on Icom’s latest range of marine radios for easy operation.
Output power:
25W
Hailer/PA:
10W PA
Horn/Foghorn:
Built-in
Waterproof rating:
IPX7 (Radio and microphone)
Versions:
Radio with HM195B
Radio with HM195SW
Active noise cancelling
The built-in bidirectional active noise cancelling reduces background noise to up to 90% and improves both your transmitted voice and incoming call. Hear and be heard more clearly.
10W Amplifier
The M400BB has a built-in 10W amplifier that increases the audio output from an additional external speaker. The public address function allows you to make an announcement from the microphone like a loud speaker, and the foghorn can also be emitted from the external speaker.
NMEA Interface
When connected to an external GPS receiver, current position and time are shown on the COMMANDMIC™ display. When receiving DSC information from another vessel, the radio can transfer it to a navigational device via NMEA 0183 connectivity.
Additional features
AquaQuake™ water draining function
Dual/tri-watch function for monitoring Ch.16 and/or call channel
Priority and normal scan
Class D DSC
Connect to the optional MA-500TR and the AIS target call function allows you to set up an individual DSC all from the MA-500TR.
VHF Mounted Marine Radio
IC-M400BB
Icom’s M400BB is perfect for boats that need a radio but don’t have room on the helm. The M400BB consist of a two-piece, black box configuration. Install the full RF black box unit in an out-of-sight place and connect the COMMANDMICIV™, HM-195 to the cockpit or fly bridge. The HM-195 allows operation of all radio functions including DSC, radio, foghorn and hailer horn. The HM-195 also utilizes the same user soft key interface used on Icom’s latest range of marine radios for easy operation.
Output power:
25W
Hailer/PA:
10W PA
Horn/Foghorn:
Built-in
Waterproof rating:
IPX7 (Radio and microphone)
Versions:
Radio with HM195B
Radio with HM195SW
Active noise cancelling
The built-in bidirectional active noise cancelling reduces background noise to up to 90% and improves both your transmitted voice and incoming call. Hear and be heard more clearly.
10W Amplifier
The M400BB has a built-in 10W amplifier that increases the audio output from an additional external speaker. The public address function allows you to make an announcement from the microphone like a loud speaker, and the foghorn can also be emitted from the external speaker.
NMEA Interface
When connected to an external GPS receiver, current position and time are shown on the COMMANDMIC™ display. When receiving DSC information from another vessel, the radio can transfer it to a navigational device via NMEA 0183 connectivity.
Additional features
AquaQuake™ water draining function
Dual/tri-watch function for monitoring Ch.16 and/or call channel
Priority and normal scan
Class D DSC
Connect to the optional MA-500TR and the AIS target call function allows you to set up an individual DSC all from the MA-500TR.
Black Box Transceiver – Icom Quality. Small Footprint.
Icom’s M400BB is perfect for boats that need a radio but don’t have room on the helm. The M400BB consist of a two-piece, black box configuration. Install the full RF black box unit in an out-of-sight place and connect the COMMANDMICIV™, HM-195 to the cockpit or fly bridge. The HM-195 allows operation of all radio functions including DSC, radio, foghorn and hailer horn. The HM-195 also utilizes the same user soft key interface used on Icom’s latest range of marine radios for easy operation.
Output power:
25W
Hailer/PA:
10W PA
Horn/Foghorn:
Built-in
Waterproof rating:
IPX7 (Radio and microphone)
Versions:
Radio with HM195B
Radio with HM195SW
Active noise cancelling
The built-in bidirectional active noise cancelling reduces background noise to up to 90% and improves both your transmitted voice and incoming call. Hear and be heard more clearly.
10W Amplifier
The M400BB has a built-in 10W amplifier that increases the audio output from an additional external speaker. The public address function allows you to make an announcement from the microphone like a loud speaker, and the foghorn can also be emitted from the external speaker.
NMEA Interface
When connected to an external GPS receiver, current position and time are shown on the COMMANDMIC™ display. When receiving DSC information from another vessel, the radio can transfer it to a navigational device via NMEA 0183 connectivity.
Additional features
AquaQuake™ water draining function
Dual/tri-watch function for monitoring Ch.16 and/or call channel
Priority and normal scan
Class D DSC
Connect to the optional MA-500TR and the AIS target call function allows you to set up an individual DSC all from the MA-500TR.
VHF Mounted Marine Radio
VHF Mounted Marine Radio
Black Box Transceiver – Icom Quality. Small Footprint.
Features
Features
Features
VHF Mounted Marine Radio
IC-M400BB
Black Box Transceiver – Icom Quality. Small Footprint.
Specifications
Specifications
Features
Black Box Transceiver – Icom Quality. Small Footprint.
General
Frequency Range
156.025–157.425MHz
156.050–163.275MHz
156.525MHz
Usable channel groups INT, USA, CAN and WX channels
Type of emission 16K0G3E (FM), 16K0G2B (DSC)
Power supply requirement 13.8V DC nominal
(11.7–15.9V DC)
Current drain (at 7.4V DC)
Tx (at 25W output) 5.5A Max.
Rx (Max. audio) 3.5A Max.
Operating temperature range
–20°C to +60°C; –4°F to +140°F
Antenna Impedance 50Ω (SO-239)
Dimensions (W×H×D)
IC-M400BB
HM-195B/SW
216×79×125mm; 8.5×3.11×4.92 in
67.5×144.5×37mm; 2.66×5.69×1.46 in
Weight (approx.)
IC-M400BB
HM-195B/SW
830g; 1.83 lb
400g; 14.1 oz
NMEA in/out formats
RMC, GGA, GNS, GLL, DSC, DSE
Transmitter
Output power (Hi/Low)
25W, 1W (High, low)
Max. frequency deviation ± 5.0 kHz
Frequency tolerance ±10ppm
Spurious emissions Less than –70dBc (at 25W)
Receiver
Sensitivity
Main
Ch. 70
0.22μV typical (at 12dB SINAD)
–5dBμ emf typ. (1% BER)
Squelch sensitivity
Less than 0.32μV
Adjacent Channel Selectivity
Main
Ch. 70
More than 70dB
More than 73dBμ emf (1% BER)
Spurious response
Main
Ch. 70
More than 70dB
More than 73dBμ emf (1% BER)
Intermodulation
Main
Ch. 70
More than 70dB
More than 68dBμ emf (1% BER)
Hum and noise ratio More than 40dB
Audio output power
Internal speaker More than 2W (HM-195B/SW)
External speaker More than 10W (RX Speaker)
Measurements made in accordance with TIA/EIA 603 and IEC 62238 (Ch. 70 receiver specifications).
Applicable IP Rating
Ingress Protection Standard (IC-M400BB and HM-195B/SW)
Water IPX7 (Waterproof protection)
Supplied accessories
COMMANDMIC, either HM-195B or HM-195SW
DC power cable
