General
Frequency Range
156.050–163.275 MHz
Usable channels INT, USA, CAN, WX channels
Type of emission 16K0G3E (FM)
Current drain (at 7.4V DC)
Tx (at 6W output)
Rx (at AF max.)
Internal speaker
External speaker
Power save
1.5A typical
300mA typ.
200mA typ.
10mA typ.
Operating temperature range
-20°C to +60°C; -4°F to +140°F
Antenna Impedance 50Ω (STUD)
Dimensions (W×H×D)
(Projections not included) 62 × 139.5 × 43 mm;
2 7⁄16 × 5 1⁄2 (H) × 1 11⁄16 in
Weight (approx.) 295g; 10.4oz (With BP-252, FA-SC58V and MB-109)
Transmitter
Output power (Hi/Low)
6W (High),1W (Low)
2W (High, with alkaline cells), 1W low
Max. frequency deviation ± 5 kHz
Frequency error ±10ppm
Audio harmonic distortion Less than 10% (at 60% dev.)
Spurious emissions –68dBc
Adjacent channel power 70dB
Audio harmonic distortion 10% (at 60% dev.)
Residual modulation 40dB
Receiver
Sensitivity (at 12dB SINAD) 0.25µV typical
Squelch sensitivity
0.35µV typ. (at threshold)
Adjacent Channel Selectivity 70dB typical
Spurious response 70dB typical
Intermodulation Rejection 70dB typical
Hum and noise ratio 40dB typical
Audio output power (at 10% distortion)
Internal speaker
External speaker
700mW typ. (16Ω load)
350mW typ. (8Ω load)
Applicable U.S. Military Standards
Standard MIL 810 F
Method Proc
Low Pressure 500.4 I, II
High Temp. 501.4 I,II
Low Temp. 502.4 I, II
Solar Radiation 505.4 I
Humidity 507.4 —
Temperature Shock 503.4 I
Vibration 514.5 I
Shock 516.5 I
Also meets equivalent MIL-STD-810-C, -D and -E.
Measurement made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.
Supplied Accessories
Li-Ion battery pack, BP-252
Battery charger, BC-173
AC adapter, BC-147SA/BC-174A/E
Belt clip, MB-109
Antenna, FA-SC58V
Hand strap
VHF Marine Radio
Features
Specifications
IC-M36
Clear Voice Boost and It Floats!
In marine environments there are many sources of noise that can affect the quality of your communications, such as engine noise, breaking surf and more. The IC-M36 automatically adjusts the outgoing voice and the incoming audio to compensate for the ambient noise level: whether you're in a loud environment or in a quiet area, the IC-M36 ensures your radio conversation is sent and received as clearly as possible.

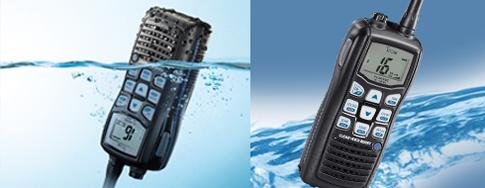

And yes, it floats
Continuing the legacy of the IC-M34, the IC-M36 floats back up to the surface if dropped overboard, even if the optional speaker microphone, HM-165, is attached.
AquaQuake draining function
The vibrating "buzz" sound clears water away from the speaker grill.
LOUD button
When you need an instant “boost” in the volume, a simple push of the “LOUD” button gives you full volume immediately. In addition, holding the “LOUD” button mutes the audio output.
Noise cancelling microphone
The sub-microphone on the rear panel inverts phase and cancels out ambient noise from the main microphone. As a result, the IC-M36 reduces the affect of background noise (particularly trebly noise) from the transmitted signal and makes it easier to catch voice communication.
Automatic volume adjustment
When in an engine room or high noise environment, the sub-microphone detects the ambient noise and the IC-M36 automatically increases the volume output to suit the surrounding environment.
Low power consumption
Although the IC-M36 delivers a high 6W RF output and 700mW audio output, its current saving circuit offers a practical 8 hours* of operating time with the supplied 980mAh Lithium-Ion battery pack.
*Typical operation with Tx (Hi): Rx: standby=5:5:90
Large buttons and slim dimensions
Thanks to the large, easy-to-operate buttons, the IC-M36 provides intuitive operation. A pinched-waist slender body makes it easy to hold and carry the radio, and is surprisingly compact for a floating radio.
Other features
Waterproof construction equivalent to IPX7 (1m depth for 30 minutes)
Dual/Tri-watch functions
4-step battery life indicator
Weather channel with weather alert
Auto scan function
Instant access to Ch 16 or Ch 9
