Built-in GPS Receiver (IC-M324G only)
The built-in GPS receiver shows your current position and time and can be used for DSC calls. GPS data source is selectable from internal and external GPS (and GPS-OFF setting).

Intuitive User Interface
Icom’s common Marine Family User Interface provides simple operation for the boat owner. A rotary selector and directional keypad provide intuitive operation. The high-definition dot-matrix display allows all information to be clearly viewed.

Built-in Class D DSC
The built-in DSC watch function monitors Ch.70 (DSC channel) activity, even while you are receiving another channel. DSC functions include: distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls.



Common NMEA Interface
When receiving DSC information from another vessel, the IC-M324/G can transfer it to a navigational device via NMEA 0183 connectivity.

Compatible with MA-500TR ClassB AIS Transponder
The IC-M324/G can be integrated with the MA-500TR Class B AIS Transponder, which allows you to transmit DSC individual calls to a selected vessel instantly without manual MMSI entry. It is very handy if you are waiting to contact vessels on the AIS screen - an essential safety feature in an emergency.

IPX7 Submersible Protection
The IC-M324/G withstands submersion in up to 1.0m depth of water for 30 minutes. It is equivalent to the IPX7 standard.

Favorite Channel Function
This function promotes quick channel selection. Set the “Tag” channel to the channels used most often. When pushing the up/down buttons on the hand microphone, only the tagged channels are selected, while untagged channels are skipped.

And more
MarineCommander™ compatible
MA-500TR AIS transponder compatible
AquaQuakeTM water draining function
Dual/tri-watch function for monitoring Ch.16 and/or call channel
Black and super white versions available





VHF Mounted Marine Radio

VHF Mounted Marine Radio

  Features

IC-M324

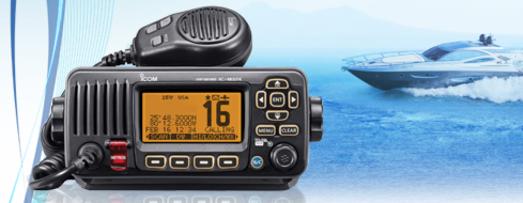

 A VHF Marine Transceiver Offering Top Performance and Great Value!

  Specifications

IC-M324

General
Frequency Range
156.025–157.425MHz
156.050–163.275MHz
156.525MHz
Usable channel groups INT, USA, CAN and WX channels
Type of emission 16K0G3E (FM), 16K0G2B (DSC)
Power supply requirement 13.8V DC nominal
(11.7–15.9V DC)
Current drain (at 7.4V DC)
  Tx (at 25W output) 5.5A Max.
  Rx (Max. audio) 3.5A Max.

Operating temperature range
–20°C to +60°C; –4°F to +140°F

Antenna Impedance 50Ω (SO-239)
Dimensions (W×H×D)
IC-M400BB
HM-195B/SW
216×79×125mm; 8.5×3.11×4.92 in
67.5×144.5×37mm; 2.66×5.69×1.46 in
Weight (approx.)
IC-M400BB
HM-195B/SW
830g; 1.83 lb
400g; 14.1 oz

NMEA in/out formats
RMC, GGA, GNS, GLL, DSC, DSE

Transmitter
Output power (Hi/Low)
25W, 1W (High, low)
Max. frequency deviation ± 5.0 kHz
Frequency tolerance ±10ppm
Spurious emissions Less than –70dBc (at 25W)

Receiver
Sensitivity
Main
Ch. 70
0.22μV typical (at 12dB SINAD)
–5dBμ emf typ. (1% BER)
Squelch sensitivity
Less than 0.32μV
Adjacent Channel Selectivity
Main
Ch. 70
More than 70dB
More than 73dBμ emf (1% BER)
Spurious response
Main
Ch. 70
More than 70dB
More than 73dBμ emf (1% BER)
Intermodulation
Main
Ch. 70
More than 70dB
More than 68dBμ emf (1% BER)
Hum and noise ratio More than 40dB
Audio output power
Internal speaker More than 2W (HM-195B/SW)
External speaker More than 10W (RX Speaker)

Measurements made in accordance with TIA/EIA 603 and IEC 62238 (Ch. 70 receiver specifications).

Applicable IP Rating
Ingress Protection Standard (IC-M400BB and HM-195B/SW)
Water IPX7 (Waterproof protection)

Supplied accessories
COMMANDMIC, either HM-195B or HM-195SW
DC power cable
