Features
VHF Mounted Marine Radio
General
Frequency Range
156.025–162.000MHz
156.025–162.025MHz
Usable channels INT, USA, CAN channels
Type of emission
16K0G3E (FM)
Power supply voltage
13.8V DC nominal
1.5A (Maximum)
Current drain
Tx (at 25W output) 5.5A (Maximum)
Rx (Maximum audio) 200mA
Operating temperature range
–20°C to +60°C; –4°F to +140°F
Antenna Impedance 50Ω
Dimensions (W×H×D)
(Projections not included) 153×67×133 mm;
6.0×2.6×5.2 inch
Weight (approximately) 790g; 1.7lb
Transmitter
Output power (Hi/Mid/Low) 25W (High power)
1W (Low power)
Modulation
Variable reactance frequency
modulation
Max. frequency deviation
±5kHz
Frequency stability
±5ppm
Spurious emissions Less than –70dBc (High power)
Less than –56dBc (Low power)
Adjacent channel power More than 70dB
Audio harmonic distortion Less than 10% (at 60% dev.)
Residual modulation
More than 40dB
Receiver
Intermediate frequency
1st 21.7MHz
2nd 450kHz
Sensitivity –14dBμ typ. (at 12dB SINAD)
Squelch sensitivity
Less than –10dBμ
Adjacent Channel Selectivity
75dB typical
Spurious response 75dB typical
Intermodulation 75dB typical
Hum and noise ratio
More than 40dB
Audio output power 4.5W typical
(at 10% distortion with a 4Ω load)
Applicable U.S. Military Standards
Standard MIL 810 G
Method Proc
Temp Shock 503.5 I
Rain Blowing/Drip 506.5 I, III
Humidity 507.5 –
Salt Fog 509.5 –
Vibration 514.6 I
Shock 516.6 II
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Applicable IP Rating
Ingress Protection Standard
Water IPX7 (Waterproof protection)
VHF Fixed Mount – Export Only

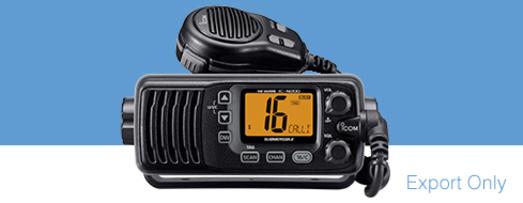

IC-M200
The M200 gives you the same Icom performance and reliability boaters expect in a fixed mount but at a great value. This small compact unit includes a large easy to read LCD plus is IPX7 rated and comes with the AquaQuake draining function for optimal audio. This is a perfect radio for boats that need a basic radio or boats with limited space.
Output power:
25W
Waterproof rating:
IPX7
Features
Dualwatch and tri-watch function
Favorite channel function
Built-in ultra-stable TCXO for reliable frequency stability
Channel operation with the hand microphone, HM-164B, in your hand
Instant-access button for Channel 16 and call channel
Priority scan and normal scan
Built-in low voltage indicator
Keypad backlighting
