Improved audio quality
The IDAS system occupies only 6.25kHz spacing per channel. With the improved sensitivity of narrow band communications, increased communication greater than 12.5kHz analog mode can be achieved. The IDAS system uses the AMBE+2™ codec, which provides clear audio and simultaneous data communication.
Network interface*
The IDAS repeater has a network interface* and can be connected to a LAN or the Internet via Ethernet cable. Communication range is vastly extended by the Internet connection and eliminates the need for expensive leased lines. When connected to a PC via a LAN or the Internet, you can remotely maintain the repeater configuration remotely from your PC.
* Option (Available in the future)
Digital trunking capability*
The repeater will also have digital trunking capability in the near future. This will allow you further effective channel management by sharing a minimum of channels with a large number of users.
* Some features are planned and released in the future.
19-inch rack mount 2U height low profile design
The IC-FR5000 series uses only 2U height. This low profile configuration allows you to stack multiple units in an industry standard 19-inch rack and provides great space efficiency.

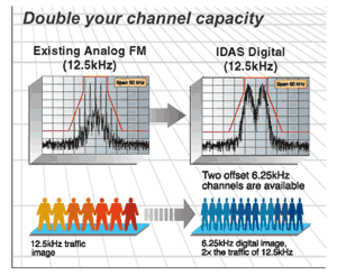

Double your channel capacity
IDAS doubles the capacity of the current 12.5kHz channel allocation. Icom allows you to meet any narrow banding requirements today, and provides a solution to any future spectrum deficiencies.
Digital/analog mixed mode operation
The IC-FR5000 series can receive both analog and digital signals on a single channel. You can partially introduce the IDAS system, while using the existing analog radios in a system. The IDAS system allows you to scale migration to narrow band digital at your own pace and need.
Stable, Flexible and High-Performing Repeater
Two RF channel modules in one unit
Two RF modules* can be installed in a chassis to reduce installation space, while the RF modules can be programmed and operated independently. LEDs on the front panel show both channel conditions.
* Optional UR-FR5000/UR-FR6000 required.

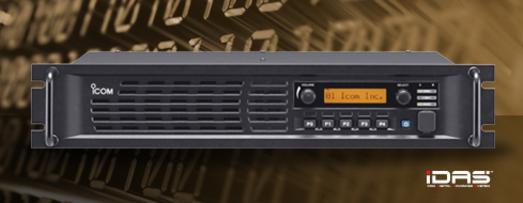

Analog & IDAS VHF/UHF Repeaters
FR5000 / FR6000
IDAS bridges the gap between analog and digital systems
IDAS is Icom's digital land mobile radio system using the NXDN™ common air interface. It has useful calling features including selective calling, status message, radio stun/kill/revive and GPS position reporting, etc. The IDAS system is ideal for business and industry users who may want to migrate to a digital system or to the future FCC mandated narrow band spacing.
IDAS™ multi-site conventional systems
Multi-site conventional systems are possible with IDAS LINQ. Choose from the following configurations: LINQREPEAT, LINQREPEAT+, LINQVOTE, and LINQVOTE+.
MultiTrunk
IDAS mult-site trunking capable! Add a UC-FR5000 and CF-FR5000MT card and multiple IDAS trunking sites can be interconnected to create a large roaming coverage area using IP.
MultiTrunk Benefits:
- Scalable from 1 channel to 30 channels per site, up to 16 sites
- Effective operations with all channels used to transmit voice or data payload, priority monitoring for emergency interrupt, and polite roaming while conversations are occurring
- All the features of a digital radios, like text, GPS and group/individual calls available in multi-site trunking
- Best value on the market for a multi-site trunking system
50W output at 50% duty cycle,
25W 100% duty cycle operation
Employing a high stability ±0.5ppm oscillator and high performance power amplifier, the IC-FR5000 series provides a reliable 100% duty cycle operation at 25W output. When operated at the high power setting of 50W, the repeater operates with a 50% duty cycle.
Multiple CTCSS, DTCS tone and RAN code decode
The IC-FR5000 series decodes multiple CTCSS and DTCS as well as digital RAN (Radio Access Number) codes on a per channel basis (up to 16 tones/codes) and downlinks the received signal with a specified tone/code. This function is useful for sharing a channel with multiple groups and provides quiet stand-by while using other groups.
Superior receiver performance
The IC-FR5000 series has class leading receiver performance of selectivity and intermodulation rejection. It improves the quality of the repeater service even under congested band conditions.
D-SUB 25-pin accessory connector
The IC-FR5000 series has a programmable D-SUB 25-pin accessory connector for connecting various trunking controllers or external remote control devices. Also, modulation/ demodulation signals can be input/ output from the D-SUB connector.
Voice scrambler
The built-in inversion type* voice scrambler provides secure conversation as stadard. When a more secure system is required, the 32 coded non-rolling type voice scrambler UT-109R* and 1020 code rolling type UT-110R* are available as an option. In IDAS digital mode, a 15-bit encryption key provides over 32,000 scrambling codes.
*These voice scramblers (inversion type, UT-109R and UT-110R) are available with analog mode only.
Built-in audio compander*
The built-in audio compander improves the signal to noise ratio and provide clear audio.
*Analog mode only.
Other features
- PTT priority setting (Local Mic., external PTT or repeater operation)
- Built-in inversion type voice scrambler and optional voice scrambler UT-109R or UT-110R*
- 5-Tone and DTMF encoder/decoder* and CW ID transmitter
- Analog wide/narrow (12.5/25kHz) channel spacing programmable*
- Normal and priority scan
- Convenient key assign stickers supplied
- Beat cancel capability
- Low voltage alert*
- Quick and easy programming from a PC
* For analog mode only
