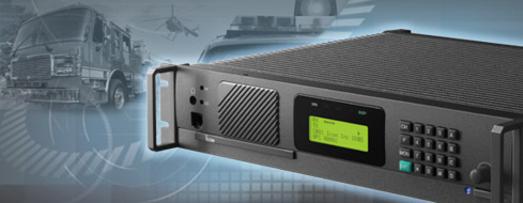

Stable, Flexible and High-Performing Repeater
P25 Repeater
110 W 100% Duty Cycle Operation
Employing a high performance power amplifi er, together with the solid heatsink built into the chassis, the IC-FR9010 series provides a reliable 100% duty cycle operation at 110W* output.
* 110W for VHF, 100W for UHF
P25 Conventional, Analog FM and Mixed Mode
The IC-FR9010 series is compatible with both analog FM mode and P25 digital mode. Program digital and/or analog FM modes per channel. The mixed mode operation allows you to receive both analog FM and P25 digital modes and to transmit either mode depending on the received signal.
500 Memory Channels Capacity
The 4×20-characters display, 16 key buttons, 500 memory channels and internal speaker allow you to use the repeater as a simple base station or to check repeater activity. The bar graph display shows the S-meter level and output power level.
D-SUB 25-pin Accessory Connector
The IC-FR9010 series has a programmable D-SUB 25-pin accessory connector for connecting external remote control devices. Also, modulation/ demodulation signals can be input/output from the D-SUB connector.
Programmable CTCSS, DTCS and NAC
The IC-FR9010 series decodes analog CTCSS and DTCS and digital NAC (Network Access Code) on a per channel basis and downlinks these with the received signal when required.
P25 Conventional Base Mode
As a P25 conventional base mode, the following P25 functions are programmable.
(Conventional base mode only)
- Emergency
- Call alert
- Radio check
- Radio inhibit (Stun)
- Radio uninhibit (Revive)
- Status update
- Status request
- SBC log (Call log)
