P25 conventional & trunking features
- Interoperability
- Conforms to the standard specifications for TIA/EIA TSB-102, CAAB, Digital C4FM Transceiver Performance Recommendations and provides interoperability with other brand P25 equipment for public safety applications. The F9011 series is P25 CAP Compliant on the DHS website and more information can be found on the FirstResponders.gov site.
- Digital/Analog mixed mode operations
- Mixed mode operation allows users to detect and receive both analog FM and P25 digital modes and to transmit either mode depending on programming.
- Individual ID and talkgroup ID
- Provides 100 individual ID and 250 talkgroup ID memories. Use the display to visually select the person or group to call.
- Encryption options
- AES and/or DES encryption keeps conversations secure AES or DES encryption unit. A FIPS AES board is certified to FIPS 140-2 for optimal secure communications.
- OTAR (Over-the-Air-Rekeying)
- Supports P25 OTAR for changing encryption keys over the air.
- Enhanced Vocoder ready
- Uses the DVSI's AMBE+2™ vocoder.
- ATG (Announcement talkback group)
- Call a large group of groups on a trunking network. Dispatcher can hear replies when radios respond to an announcement group call.
- ESN programming
- Save ESN’s in a cloning file to only allow approved radios on trunking systems.
Abundant scanning settings
The dual priority scan monitors two primary channels alternately, while scanning other channels. The mode dependent scan function automatically changes the scan list according to the operating channel. The talk back function with timer beep, TC channel and cancel channel settings allow you to preset the transmission channel when you push the PTT button during scanning operation or cancel the scanning.
Features
Specifications

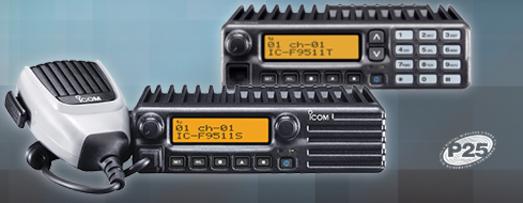

With the consideration of today’s public safety vehicles, the F9511/F9521 heavy duty mobile radios provide several options for installation and power. The F9511/F9521 heavy duty mobile radios offer both analog conventional and P25 digital conventional operation. Add the P25 trunked option to operate on local, regional or statewide P25 systems. Typical under-dash mounting along with remote mount configurations are available to allow efficient placement and use of the radio. The 110W high power VHF version provides the power required for rural and remote operation. A water resistant rating of IP54 for the control head means that the occasional or required cleaning of the vehicle interior is protected. Assignable function buttons, with customizable backlit covers allow flexibility of user functions and quick access to them. The backlit auto-dim feature allows clear vision of the display and reduced eye fatigue for night driving. Icom is the smart choice for current – and future – public safety communication needs.
Channels: 512 channels, 128 zones
Output power: 50W or 110W VHF, 50W UHF
Frequencies: 136-174MHz, 400-470MHz, 450-512MHz
P25 capability: P25 Conventional built-in with a P25 Trunking option
Programmable keys: 5
Compatible portable: F9011 Series
Versions:
Model with a display and limited keypad
Model with display and full DTMF keypad
Vote scan
The conventional voting mode scan detects the signal strength level of repeater stations and automatically selects the strongest station, useful for roaming between two or more repeater sites. After programing the voting mode to a memory zone, the user can easily start voting mode operation by changing the zone setting.
Additional features
- Programmable D-Sub 25-pin ACC connector for connecting external devices.
- Detachable front panel for flexible installation.
- 22W amp for PA when external speaker is connected.
- RX speaker function allows user to relay the received audio over the loud speaker.
- Dot matrix LCD, upper and lowercase characters show up to 2 lines and 25 characters.
- Tactical group function allows you to copy memory channels to the tactical zone and temporarily regroup memory channels.
- Talk around function.
- Microphone hanger action (On hook scan and off hook monitor).
P25 Radio Solutions for All Public Safety Customers
General
Frequency coverage
F9511S/T/HT 136–174 MHz
F9521S/T 400-470, 450-512 MHz
Number of channels Max. 512 channels/ 128 zones
Power supply requirement 13.6V DC nominal
Current drain (approx.)
50W Version
Tx High (50W) 11..0A/14.0A (VHF/UHF)
Rx Max. Audio 1000mA
Stand-by 350mA
110W Version
Tx High (110W) 22.0A
Rx Max. Audio 3.0A
Stand-by 400mA
Operating temperature range –30°C to +60°C; –22°F to +140°F
Antenna impedance 50Ω (SO-239)
Dimensions (W×H×D)
175×45×170mm;
67⁄8×125⁄32×611⁄16in
Weight
50W
110W
1.5kg; 3.3lb
1.5kg; 3.3lb
Rated output power 50W/110W
Channel spacing 15/30 kHz (VHF), 12.5 kHz (UHF) (analog)
12.5 kHz (digital)
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MILSTD requirements and strict environmental standards.
Standard MIL 810 F
Method Proc
Low Pressure 500.4 I, II
High Temp. 501.4 I, II
Low Temp. 502.4-3 I, II
Temp. Shock 503.4 I
Solar Radiation 505.4 I
Humidity 507.4 –
Salt Fog 509.4 –
Dust Blowing 510.4 I
Vibration 514.5 I
Shock 516.5 I, IV
Also meets equivalent MIL-STD-810-C, -D and -E.
Ingress protection standard: Dust and water: IP54* (Dust-protection and water resistant)
*IP54 test were performed on the controller and RMK-2 only.
Measurements made in accordance with TIA-102 (Digital), TIA-603B (Wide/narrow). All stated specifications are subject to change without notice or obligation.
Supplied accessories
F9511S/F9521S
Hand microphone, HM-148G
DC power cable
Microphone hanger
Key assign stickers
Mounting bracket kit
F9511T/F9521T
Hand microphone, HM-148G
External speaker, SP-35
DC power cable
Microphone hanger
Key assign stickers
Mounting bracket kit
F9511HT
Hand microphone, HM-148G
DC power cable
Separation cable 16.4ft, OPC-726
Microphone hanger
Key assign stickers
Mounting bracket kit
Requires external speaker
Transmitter
Output power 50W, 25W, 5.0W
Max. frequency deviation
Maximum pattern
Minimum pattern ±5.0/2.5 kHz (Wide/Narrow)
±2.85 kHz (Digital)
±0.95 kHz (Digital)
Frequency error ±1.0ppm
Spurious emissions 70dB min.
Adjacent channel power 70/60dB min (wide/Narrow)
67dB min. (Digital)
FM hum and noise 48/45dB typ. (VHF, Wide/Narrow)
48/43dB typ. (UHF, Wide/Narrow)
Audio harmonic distortion 3% typ. (40% deviation)
External microphone impedance 600Ω (8-pin modular)
Receiver
Sensitivity
Analog
Digital 0.25μV typ. (at 12dB SINAD)
0.25μV typ. (at 5% BER)
Squelch sensitivity 0.25μV typ. (at threshold)
Adjacent Ch. selectivity
Analog (TIA/EIA603B)
(TIA/EIA603)
Digital 81/53dB typ. (VHF, Wide/Narrow)
79/53dB typ. (UHF, Wide/Narrow)
63dB typ.
Spurious response 85dB min. (VHF)
70dB* min. (UHF)
*85dB min (406. 1-420 MHz)
Intermodulation 78dB typ.
Audio output power
50W
External audio (D-sub)
110W
External audio (D-sub)
1.0W typ. at 10% distortion with a 8Ω load
4W typ.
22W typ.
at 10% distortion with a 4Ω load
Hum and noise ratio 55/51dB typ. (VHF, Wide/Narrow)
30/45dB typ. (UHF, Wide/Narrow)
52dB typ. (Digital)
External speaker connector 2-conductor 3.5 (d) mm (1⁄8″)/4Ω
