IC-F50V / IC-F60V
Features
General
Frequency range
IC-F50V
136-174 MHz IC-F60V
400-470 MHz
450-512 MHz (U.S.A.)
450-520 MHz (General)
Number of Channels Max. 128 channels/ 8 zones
Channel spacing 12.5/25 kHz, 15/30 kHz
Antenna impedance 50 Ω (SMA Type)
Frequency error ±2.5ppm
PLL channel step 2.5/3.125 kHz
Power supply requirements 7.2V DC
Current drain (approx.)
Transmit 5W
Receive 1W
AF max.
Stand-by 1.8A
0.7A
500mA (Internal speaker)
350mA (External Speaker)
85mA
Operating temperature range –30°C to +60°C
–22°F to +140°F
Dimensions (W x H x D)
(projections not included) 56 × 97 × 36.4mm
27⁄32 × 313⁄16 × 17⁄16 in.
Weight (approx.) VHF: 280g; 9.9oz (With BP-227)
UHF: 284g; 10.0oz (With BP-227)
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and Ingress Protection standards.
Standard MIL 810 C MIL 810 D MIL 810 E MIL 810 F
Method Proc Method Proc Method Proc Method Proc
Low Pressure 500.1 I 500.2 I, II 500.3 I, II 500.4 I, II
High Temp. 501.1 I 501.2 I, II 501.3 I, II 501.4 I, II
Low Temp. 502.1 I 502.2 I, II 502.3 I, II 502.4 I, II
Temp. Shock 503.1 I 503.2 I 503.3 I 503.4 I
Solar Radiation 505.1 I 505.2 I 505.3 I 505.4 I
Rain 506.1 I, II 506.2 I, II 506.3 I, II 506.4 I, II
Humidity 507.1 I, II 507.2 II, III 507.3 II, III 507.4 –
Salt Fog 509.1 I 509.2 I 509.3 I 509.4 –
Dust 510.1 I 510.2 I 510.3 I 510.4 I
Vibration 514.2 VIII, X 514.3 I 514.4 I 514.5 I
Shock 516.2 I, II, V 516.3 I, IV 516.4 I, IV 516.5 I, IV
Lone worker function
When the radio is not operated for a preset period (1 to 255 min.), the radio sounds a beep and requires you to push the emergency button. If the emergency button is not pushed for a preset time (1 to 255 sec.), an emergency signal automatically transmits and informs your co-worker or dispatcher that something may have happened to the individual worker.
CTCSS/DTCS/2-Tone/5-Tone signaling
The built-in CTCSS, DTCS, 2-Tone, 5-Tone and MDC signaling capabilities to set up your talk group or selective calling. The IC-F50V can decode ten 2-Tone codes or eight 5- Tone codes on a channel.
When a matched tone is received, the following actions are programmable for each code.
Bell icon
Answer back call
Beep sound
Auto transmit
Radio Stun/Kill/Revive
Voice recorder
Vibration alert
The following selective calling and ANI features are available with the built-in MDC signaling.
PTT ID
Radio check
Caller ID
Call alert
SelCall
Emergency, emergency mic monitoring
500 Aliases
Status/message
Radio stun/revive
Mode dependent scan
In the mode dependent setting, the scanning setting is dependent on the operating channel. When you change the operating channel, the scanning list automatically changes to the operating channel setting. It is convenient when you move to a different operating area and change an operating channel, you don’t have to change the scanning setting.
Enhanced scanning
The Tx channel while scanning can be programmed per scanning list. The talk back function allows you to transmit on the channel detected after scanning resumes after a preset time, prior to the Tx channel setting. The nuisance delete function temporarily deletes a busy channel from the scanning list. Backlight at stop scan automatically turns on the LCD backlight when the scan stops.
Overview
Firefighters, Police, Security, Oil industry and Public utilities. Each profession has its own unique challenges, but all have one thing in common: the need for reliable communications. Icom’s IC-F50/F60 offers a compact waterproof, MIL STD package. The Voice/Vibrate version is perfect for volunteer fire and EMS units combining radio and pager functionality. Rain or shine, this radio keeps you in contact in nearly any environment.

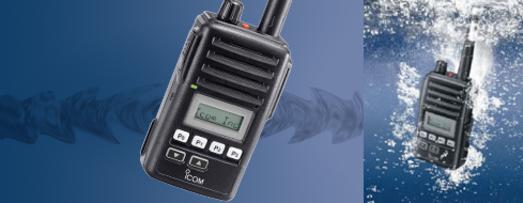

IP67 waterproof protection
The gasket sealed waterproof housing provides superior IP67 waterproof protection (1m dept for 30 minutes). Reliable and dependable use in harsh conditions such as rain, snow, sudden change in temperature, makes the F50/F60 the radio for all situations.
Vibration alert function
When a pre-programmed 2-tone/5-tone code or call from a specific user (MDC mode only) is received, the radio vibrates powerfully enough to be felt through heavy clothing. Available on specific versions only.
8 minute voice recorder
When When a pre-programmed 2-tone/5-tone code or a SelCall (MDC mode only) is received, the voice recorder automatically starts recording the incoming message. You will not miss an important call even when you are temporarily away from the radio. You can manually start recording incoming calls and also your own message. It records up to a maximum of 8 minutes (Or up to 48 calls of 10 sec. recording time). Available on specific versions only.
128 Channels / 8 zones
The large capacity of 128 memory channels with 8 memory zones allows you to divide and store a variety of channels from local to wide area network channels.
700mW audio output
Loud 700mW* audio output with the built-in BTL amp. The built-in audio compander provides clear, low noise communications. Improved bass characteristics also betters the audio quality.
* Typical with internal speaker.
8-Character LCD display
The 8-character alphanumeric display shows channel, bank, tone code and scanning channel names on the display. 7 operational icons on the sub-line show various status at a glance.
Other features
Inversion type *1 voice scrambler built-in
Optional VOX headsets available
Power ON password
Radio stun/kill/revive
8 DTMF autodial
Normal and priority scans
2-step power saver and 2-step low battery beep
Busy, repeater lockout functions
*1 Inversion type voice scrambler is not compatible with UT-109/UT-110 voice scrambler. UT-109/UT-110 cannot be physically installed into the IC-F50V.
Compact Waterproof Analog Portables VHF/UHF
Transmitter
Output power
IC-F50V
IC-F60V
5.0W
4.0W
Modulation system Variable reactance frequency modulation
Max. frequency deviation ±5 kHz (wide)
±2.5 kHz (narrow)
Modulation limiting 60-100% of Max. deviation
Audio harmonic distortion 3% typ. (AF 1 kHz, 40% deviation)
Spurious emissions 70dB typ.
Adjacent channel power 70dB Min. (wide)
60dB Min. (narrow)
FM Hum and Noise 46dB typ. (wide)
40dB typ. (narrow)
External microphone impedance 9-pin multi connector/2.2kΩ
Receiver
Sensitivity 0.25µV typ. (at 12db SINAD)
Squelch sensitivity 0.25µV typ. (at threshold)
Adjacent channel selectivity 75dB typ. (wide)
65dB typ. (narrow)
Spurious response 70dB
Intermodulation 74dB typ.
Hum and noise 45db typ. (wide)
40dB typ. (narrow)
Audio output power 0.7W typ. (Internal speaker)
0.5W typ. (external speaker)
at 5% distortion with an 8Ω load
External SP connector 9-pin multi connector/8Ω
Ingress Protection Standard
Dust & Water IP67 (Dust-tight and waterproof protection)
Measurements made in accordance with EIA-152C/204D, TIA-603. All stated specifications are subject to change without notice or obligation.
Supplied Accessories
Antenna (Length may differ according to version)
Alligator-type belt clip, MB-98
Battery pack, BP-227
