Wide Area Coverage with NXDN™ Type-C Trunking

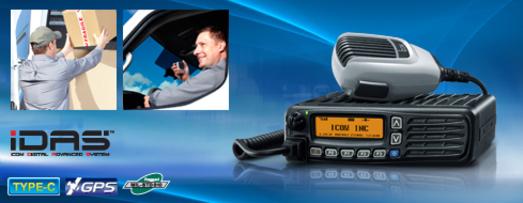

IC-F5360D / IC-F6360D
Specifications
VHF and UHF Digital Transceiver
Features
Built-in GPS receiver*
Your current position data can be attached to a voice or data (status or emergency signal) transmission and can be sentto dispatch stations.
*External GPS antenna required.
Transparent data
When IC-F5360D series is connected to a PC or other external equipment, the transparent data function allows data communication in a digital mode. It can be used for remote telemetry system control or data applications.
D-Sub accessory connector
The IC-F5360D series has a D-Sub 15-pin ACC connector for connecting various external devices.
Supplied accessories
May vary depending on version.
Hand microphone (HM-148G)
DC power cable
Mounting bracket kit
Microphone hanger
Transmitter
Output power
(at 13.6V DC) IC-F5360D
50W, 25W, 5W (Hi, L2, L1) IC-F6360D
45W, 25W, 4.5W (Hi, L2, L1)
Max. frequency deviation ±2.5kHz (Narrow)
Frequency stability ±1.0ppm
Spurious emissions IC-F5360D
87dB typ. IC-F6360D
80dB typ.
FM hum and noise IC-F5360D
45dB typ. (Narrow) IC-F6360D
45dB typ. (Narrow)
Audio harmonic distortion 1% typ. (AF 1kHz 40% deviation)
FSK error 1% typ. (Digital 6.25/12.5kHz)
Ext. microphone connector 600Ω (8-pin modular)
Receiver
Sensitivity
(at 12dB SINAD)
(Digital 5% BER)
0.25μV typ.
–9dBμV emf typ.
Adjacent channel selectivity 70/70/59dB typ. (Narrow/D 12.5kHz/D 6.25kHz)
Spurious response 80dB typ.
Intermodulation rejection 75/70/70dB typ. (Narrow/D 12.5kHz/D 6.25kHz)
Hum and noise 40dB typ. (Narrow)
Ext. speaker connector 2-conductor 3.5 (d) mm (1⁄8ʺ)/4Ω
Audio output power (at 5% distortion) 4W typ. (at 5% distortion, 4Ω load)
Measurements made in accordance with TIA-603, EN 301-166 and EN 300-113.
All stated specifications are subject to change without notice or obligation.
Type-C trunking compatible
The IC-F5360D series provides NXDN™ Type-C trunking and NXDN™ conventional systems.
- Paging call
- Broadcast call
- All call
- Group call
- Individual call
- Status call
- Text message
- Emergency call
- Stun and Kill (RX)
- Radio check (RX)
- Over-the-air alias
- GPS
- 15-bit digital scrambler
- RAN (Radio Access Number)
- Digital/analog mixed mode operation (Conventional system)
Other features
- MIL-STD 810 G rugged construction
- 512 channels with 128 zones
- CTCSS/DTCS/DTMF encoder/decoder*
- MDC 1200 PTT ID transmission*
- Audio compander*
- Inversion voice scrambler*
- 4W front mounted speaker
(* = Analog mode only)
General
Frequency coverage (MHz)
IC-F5360D
136–174MHz IC-F6360D
400–470MHz
Number of channels 512 channels/128 zones
Type of emissions 8K50F3E, 8K30F1E/F1D, 4K00F1E/F1D
Channel spacing 8K50F3E, 8K30F1E/F1D, 4K00F1E/F1D
Power supply requirement 13.6V DC
Current drain
TX High
RX Max. auidio/ Sandby
IC-F5360D
10A (50W)
0.9A/250mA IC-F6360D
10A (45W)
0.9A/250mA
Antenna impedance 50Ω (SO-239)
Operating temperature range –30°C to +60°C ; –22°F to +140°F
Dimensions (W×H×D)
(Projections not included) 160×45×150mm; 6.3×1.77×5.91in
Weight 1.3kg; 2.87lb
Applicable U.S. Military Specifications
Icom makes rugged products that meet MIL-STD requirements and strict environmental standards as follows.
Standard MIL 810G
Method Procedure
Low Pressure 500.5 I, II
High Temp. 501.5 I, II
Low Temp. 502.5 I, II
Temp. Shock 503.5 I-C
Solar Radiation 505.5 I
Humidity 507.5 II
Vibration 514.6 I
Shock 516.6 I, IV
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Menu-driven user interface
The menu-driven user interface provides easy and intuitive operation. The functions can be toggled with the left and right [P2] and [P3] buttons and allow you to perform various operations and settings.
