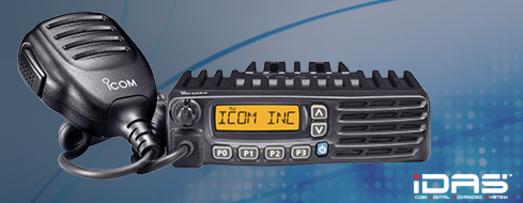

VHF / UHF digital transceiver

IC-F5220D / IC-F6220D

Transmitter
Output power (at 13.6V DC)    F5220D: 50W, 25W, 5W (Hi, L2, L1)
F6220D: 45W, 25W, 4.5W (Hi, L2, L1)
Max. frequency deviation    ±5.0 kHz (wide)
±2.5 kHz (narrow)
Frequency stability
±1.0ppm
Spurious emissions    F5220D: 87dB typ.
F6220D: 85dB typ.
FM Hum and noise    F5220D: 50/45dB typ. (W/N)
F6220D: 46/40dB typ. (W/N)
Audio harmonic distortion
3% typ. (AF 1kHz 40% deviation)
FSK Error
2% typ.
External microphone connector    600Ω (8-pin modular)

Receiver
Sensitivity
(at 12dB SINAD)
(at 5% BER)
F5220D
0.25μV typ.
0.18μV typ.    F6220D
0.25μV typ.
0.18μV typ.
Adjacent channel selectivity    F5220D: 80/70/65dB typ. (W/N/D)
F6220D: 75/66/60dB typ. (W/N/D)
Spurious response rejection    80dB typ.
Intermodulation rejection    75/75/70dB typ. (W/N/D)
Hum and noise    45/40dB typ. (W/N)
Audio output power (at 5% distortion)
4W typ. (at 5% distortion, 4Ω load)
External speaker connector    2-conductor 3.5 (d) mm (1⁄8")⁄8Ω

  Features

  Specifications

General
Frequency coverage (MHz)
IC-F5220D  136-174 MHz
IC-F6220D   350–400, 400–470, 450–512, 450–520
Number of channels    128 channels/8 zones
Type of emission    16K0F3E* / 11K0F3E / 8K50F3E / 4K00F1E / F1D
Channel spacing    25* / 15 / 12.5 / 6.25 kHz
Power supply requirement    13.6V DC nominal
Current drain
  Tx High (VHF)
  Rx Max. audio
       Standby
F5220D
10A (50W)
1.2A
300mA    F6220D
11A (45W)
1.2A
300mA
Antenna impedance    5OΩ (SO-239)
Operating temperature range
-30°C to +60°C; -22°F to +140°F
Dimensions (proj. not included)    150×40×167.5mm; 5.91×1.57×6.59in
Weight    1.1kg; 2.4lb

Applicable U.S. Military Specifications and IP Rating
Standard    MIL 810 F
Method    Proc
Low Pressure    500.5    I, II
High Temp.    501.5    I, II
Low Temp.    502.5    I, II
Temp. Shock    503.5    I-C
Solar Radiation    505.5    I
Humidity    507.5    II
Vibration    514.6    I
Shock    516.6    I, IV
Also meets equivalent MIL-STD-810-C, -D  and -E.

All stated specifications are subject to change without notice or obligation.



Optional accessory cable
F5220 accessory cableAn external GPS receiver, PC or other equipment can be connected with the optional OPC-2078 (D-sub 25-pin) or OPC-1939 (D-sub 15-pin). The ACC connector provides an ignition switch, external PTT, serial input/output, horn honk, channel control and public address functions, according to the programming.
*No digital modulation "IN" using accessory cables.

  Wide Area Coverage with IDAS™ Multi-Site trunking

IDAS™ digital mode features

  • Up to 500 individual and up to 500 group ID aliases (Each for single-site/multi-site/conventional)
  • PTT ID and ANI
  • SDM (Short Data Message)
  • RAN (Radio Access Number)
  • Digital voice scrambler
  • GPS data (PC and software required to show received position data)
  • Call alert
  • Radio check (RX)
  • Remote monitor (RX)
  • ATB (All Trunks Busy) ring back
  • Status
  • Stun/kill/revive (RX)
  • Emergency


*TX: Transmit, RX: Receive


Other features

  • CTCSS/DTCS encode/decoder*
  • Microphone hanger action programmable
  • Talk around function
  • Forced narrow function*
  • Voting scan
  • Time-out-timer, lock-out penalty
  • 128 channels with 8 zones
  • Power-on password function
  • Nuisance delete function


(* = Analog only)

IDAS™ digital mode operation
The IC-F5220D series provides NXDN™ CAI-based IDAS digital mode operation. It is compatible with IDAS multi-site conventional and IDAS multi-site and single-site trunking.

4W front mounted speaker
4 watts* front facing speaker delivers clear and loud audio throughout a vehicle's cabin. In addition, the digital modulation provides distinct clarity even at the fringes of the communication range.
*Typical with internal speaker.

Channel announcement
When you change the operating channel, the radio announces the channel number. Convenient for making radio adjustments without having to look at the radio.

Roaming scan
In the multi-site trunking mode, if the signal condition worsens as the radio user moves, the roaming scan automatically finds a new site to retain the communication link and quality.

Built military rugged
The tough aluminum die-cast chassis and polycarbonate front panel have been tested to the MIL-STD-810 environmental tests.
