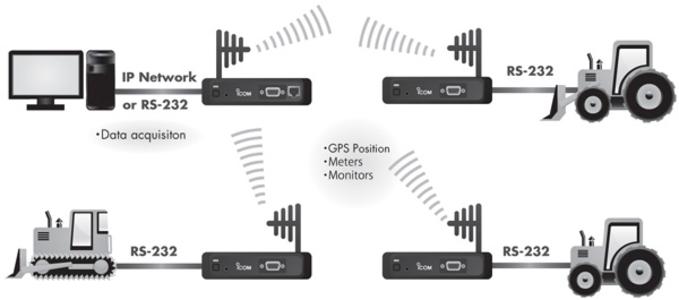

Application Examples
- Farm vehicle management
- Utilities (water works/electricity meters)
- Airport ground vehicle management
- Various gate control applications
- Oil (pipelines/well drilling) management
- Road/highway construction traffic management
- Weather/environment monitoring
- Traffic monitoring systems

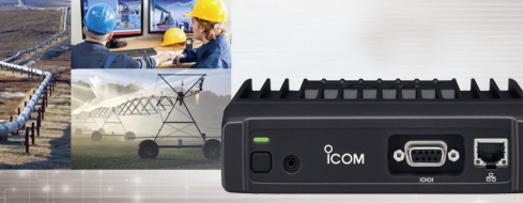

Features
- 9600bps (at 12.5kHz) and 4800bps (at 6.25kHz) data mode programmable
- RS-232 and RS-232 + Ethernet versions
- Fast data transfer using 4-level FSK modulation suitable for real-time data monitoring
- 25W, 10W and 2.5W three-step RF output power
- BNC antenna connector
- Individual, group and all calls
- Data encryption function (500 codes)
- Memory channel selection via PC control command
- Optional CS-F5120DD, Programming Software and OPC-2218LU, USB type Programming Cable
Specifications
General
Frequency coverage
IC-F5122DD
136–174MHz IC-F6122DD
400–470MHz
Number of channels 128 channels
Type of emission
8K30F1D, 4K00F1D (4FSK)
Channel spacing
12.5/6.25kHz
Over-the-air data rate 9600/4800bps
Power supply requirement 13.6V DC
Current drain (approx.)
Tx High (25W)
Rx Standby
6A
400mA
Antenna impedance 50Ω (BNC)
Operating temperature range
–30°C to 60°C ; –22°F to +60°F

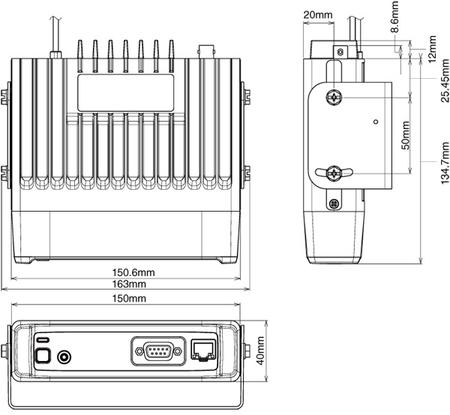

Dimensions (W×H×D)
(Projections not included)
150×40×134.7mm;
5.91×1.57×5.3 in
Weight (approx.) 900g; 2.0lb
Ethernet interface
(Depending on version) 10BASE-T (Full/Half-duplex), 100BASE-TX (Half-duplex)
with Auto-negotiation function
RS-232 connection rate 1200, 2400, 4800, 9600, 19200, 38400 baud
Transmitter
Output power (at 13.6V DC)
25W, 10W, 2.5W (Hi, L2, L1)
Spurious emissions 70dB min.
FSK error 2.5% typ. (DN/DVN)
Frequency stability ±1.0ppm
Receiver
Sensitivity (at 1% BER) –4dBμV/–5dBμV emf typ. (DN/DVN)
Adjacent channel selectivity 64dB/60dB typ. (DN/DVN)
Spurious response 76dB/70dB typ. (DN/DVN)
Intermodulation 68dB/66dB typ. (DN/DVN)
