Features

VHF and UHF Transceivers

Transmitter
Output power (approx)
F5011: 50W, 25W, 5W (Hi, L2, L1)
F6011: 45W, 25W, 4.5W (Hi, L2, L1)
Max. frequency deviation    ±5.0/2.5 kHz (Wide/Narrow)
Frequency error    ±2.5ppm
Spurious emissions    F5011: 70dB min.
F6011: 70dB typ.
FM Hum and Noise    46/40dB typ. (Wide/Narrow)
Audio harmonic distortion    3% typ. (AF 1kHz 40% deviation)
Ext. microphone impedance    600Ω (8-pin modular)

Receiver
Sensitivity (12dB SINAD)    0.25μV typ.
Adjacent channel selectivity
75/65dB typ. (Wide/Narrow)
Spurious response rejection    70dB typ.
Intermodulation rejection    75dB typ.
Hum and noise ratio    45/40dB typ. (Wide/Narrow)
Audio output power
4W typ.
at 5% distortion with a 4Ω load
External speaker connector
2-conductor 3.5 (d) mm (1⁄8″) /4Ω

​Supplied Accessories
Hand microphone, HM-152
Microphone hanger
Key assign stickers
DC power cable
Mounting bracket kit

General
Frequency range
IC-F5011 136–174 MHz
IC-F6011 400–470 MHz, 450–512 MHz
Number of channels    8 channels
Channel spacing
F5011: 12.5/25 kHz, 15/30 kHz
F6011: 12.5/25 kHz
Type of emission
116K0F3E/11K0F3E
PLL channel step    2.5 kHz, 3.125 kHz
Antenna impedance    50Ω (SO-239)
Operating Temp. range
–30°C to +60°C
–22°F to +140°F
Power supply requirement    13.6V DC
Current drain (approx)
Tx 10A    11A
Rx Max Audio 700mA    700mA
   Stand-by 250mA    250mA
Dimensions (W×H×D)
(projections not included)
150×40×167.5 mm
5.91× 1.57× 6.59 in
Weight (approx.)    1.11kg; 2.4lb

Applicable U.S. Military Specifications
The IC-F5061/F6061 and RMK-3 have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard    MIL 810 F
Method    Proc
Low Pressure    500.4    I, II
High Temp.    501.4    I, II
Low Temp.    502.4    I, II
Temp. Shock    503.4    I
Solar Radiation    505.4    I
Humidity    507.4    –
Settling Dust    510.4    III
Vibration    514.5    I
Shock    516.5    I, IV
Also meets equivalent MIL-STD-810-C, -D and -E

Measurements made in accordance with EIA-152C/204D, TIA-603. All stated specifications are subject to change without notice or obligation.

  Specifications

Remote channel control with optional ACC cable
The optional ACC cable allows you to connect with various external devices to control audio output, modulated signal input, remote channel control, horn honk and many more functions. OPC-1939 is a D-SUB 15-pin type and OPC-2078 is a D-SUB 25-pin type.

Built military rugged
The IC-F5011 series is tested to MIL-STD 810 F specifications. The radio is built to survive harsh environment and keep working.

Other features

• 4W (typ.) front mounted speaker
• Wide frequency coverage (136-174, 400-470 and 450-512MHz)

• Wide/narrow channel spacing (25, 12.5kHz) programmable

• Microphone hanger action programmable

• Optional DTMF microphone

• Optional voice scrambler unit, UT-109R or UT-110R

• DTMF autodial and optional DTMF decoder, UT-108R

• PC programmable

• Talk around function

• Power-on password function

• Nuisance delete function

• Time-out-timer, lock-out penatly timer


  Simple Operation, Versatile Functions and Rugged Construction for Your Day-to-day Communication Needs

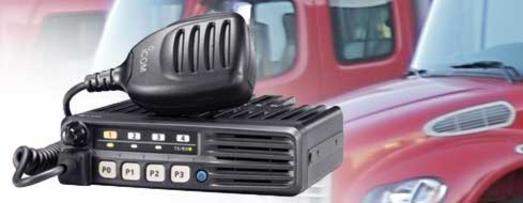

IC-F5011 / IC-F6011

Simple operation for instant communication
The IC-F5011 series has 8 channels. The P0-P3 programmable buttons allow you to customize the radio to suit your needs and convenience.

Most popular signalings built-in
Use the built-in 2-Tone, 5-Tone, MDC 1200, CTCSS and DTCS capabilities as standard to set up your own talk groups and quiet stand-by when others are talking.

Multiple 2-Tone, multiple 5-Tone
Up to ten 2-Tone or eight 5-tone codes can be decoded on a channel. Features such as stun, kill, revive, answer back, auto TX, scan audio output are programmable to respond to each tone.

MDC 1200 compatible
The IC-F5011 series has a built-in MDC 1200 for transmitting a PTT ID and emergency * signal and for receiving radio check, stun and revive. Assimilate the radio easily into existing MDC 1200 systems.
(*No ACK transmission)

Enhanced scan features
The priority scan function allows you to monitor one or two priority channels while scanning other non-priority channels. The Tx channel and talk back functions allow you to make a quick response while scanning.
