IDAS UHF/VHF Portables

IC-F3400D / IC-F4400

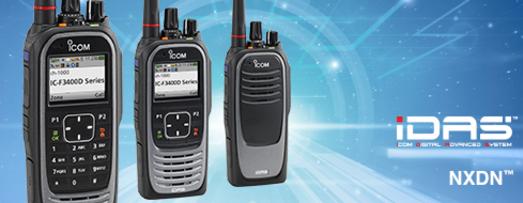

 Icom’s Next Generation IDAS™ Portables

General
Frequency range
F3400DT/DS/D
F4400DT/DS/D
136–174 MHz
380–470 MHz
450–512 MHz
Number of channels

32/2 Zones (D)
1024/128 Zones (DS/DT)
Type of emission
(Varies according to version)    16K0F3E*, 11K0F3E, 8K50F3E,8K30F1E/D, 4K00F1E/D
Channel spacing
(Varies according to version)    25/15/12.5 kHz* (Analog) 12.5/6.25 kHz (Digital)
Antenna impedance    50Ω
Power supply requirement    7.2V DC
Current drain (approx.)
Tx  High 1.5 A /1.8 A (VHF/UHF)
Rx  Max. audio/Stand-by 500 mA/140 mA
Operating temperature range    –30°C to +60°C; –22°F to +140°F

Dimensions (with BP-232)
(projections are not included)    53.6×123.5×29.3 mm; 2.11×4.86×1.15 in (With BP-283)
Weight (approx.)    180 g; 6.4 oz (main unit without battery pack and antenna)


Applicable U.S. Military Specifications & IP Rating
Icom makes rugged products that have been tested to and pased the following MIL-STD requirements and strict environmental standards.

Standard    MIL 810 G
Method    Proc
Low Pressure    500.5    I, II
High Temp.    501.5    I, II
Low Temp.    502.5    I, II
Temp. Shock    503.5    I
Solar Radiation    505.5    I
Rain Blowing/Drip    506.5    I,III
Humidity    507.5    –
Salt Fog    509.5    –
Dust Blowing    510.5    I
Immersion*    512.5    I
Vibration    514.6    I
Shock    5516.6    II, IV
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
* IC-F3400DT/DS/D, IC-F4400DT/DS/D only.

Intuitive user interface
The high-resolution color LCD enhances the visibility both in nature and indoor lighting. Clearly labeled function and menu items make it easy to understand icons and characters. The night mode LCD setting is an alternative for use in night time or low lighting conditions. The glass is scratch resistant to protect from cracks and scratches.

  Features

  Specifications

IDAS features
The F3400D series provides NXDN™ CAI-based IDAS digital model operation in IDAS conventional and multi-site conventional.


The following IDAS features available:

  • Analog/digital conventional mixed mode operation
  • Upgrade to Type-D trunking
  • Upgrade to Type-C trunking (coming soon)
  • Status
  • Text message
  • Radio check
  • Stun, kill and revive
  • Call alert
  • Remote monitor
  • And much more

Additional features

  • Hands-free communication with built-in Bluetooth®
  • Tile designed keypad increases durability and visibility
  • Transparent data modem can transmit data at 9600bps over the radio
  • Send up to 100 character text messages
  • Programmable alerts can vibrate when a specific user calls
  • Channel voice announcement
  • USB port to connect to a PC
  • Active Noise Canceling
  • Built-in 2-tone, 5-tone, CTCSS, DTCS & MDC1200 in analog
  • 14-pin ACC connector with BTL amplifier output
  • VOX (voice operated transmission) function
  • Tactical group function
  • Normal, priority and voting scan

Ingress Protection Standard
F3400DT/DS/D, F4400DT/DS/D
IP68 (Dust-tight and waterproof protection)


Transmitter
Output power    5W
Frequency error    ±1.0 ppm
Spurious emissions    75/80 dB typ. (VHF/UHF)
FM Hum and noise (Analog)    56 dB typ.
Audio harmonic distortion    0.5% typ. (@AF 1 kHz 40% deviation
FSK error (Digital    1% typ.

Receiver
Sensitivity
12 dB SINAD
1% BER
0.23 μV typ.
–4 dBμV emf. typ.
Adjacent channel selectivity
Analog
Digital
75/72 dB typ. (W/N)
66 dB typ.
Spurious response    76 dB typ.
Intermodulation
Analog
Digital
74 dB typ.
70 dB typ.
Audio output power
Internal SP
External SP
0.8 W typ. (@5% distortion with 12 Ω)
1.0 W typ. (@5% distortion with 8 Ω)
Measurements made in accordance with TIA-603, EN300 086, EN301 166, EN300 113.
All stated specifications are subject to change without notice or obligation.
*25kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions.


​Supplied accessories
Battery pack, BP-283
Belt clip, MB-133
Antenna & charger purchased separately

The F3400D series radios is Icom new flagship IDAS product. Dozens of new features and functions are included all in one new small form factor size. Features like SD Card, USB interface and Bluetooth appear for the first time in this land mobile product. A brilliant color display allows for easy observation of critical information, in the dimmest of light to the brightest of sunshine. Icom is the choice when you want to take your communications to the next level.


AquaQuake™
Popular in our marine radios, the AquaQuake draining function emits a vibrating buzz sound that clears water from the speaker grill to help maintain clear audio.

Channels:  32 channels w/2 zones (F3400D)
1024 channels w/128 zones (F3400DS/DT)
Output power: 5W
Frequencies:  136-174, 380-470 or 450-512 MHz
Digital conventional: IDAS built-in
Digital trunking Upgrade available
LTR®: Built-in
GPS: Built-in
Programmable keys:

5 (F3400D)

13 (F3400DS)
13 + 12 DTMF keys (F3400DT)
Waterproof rating: IP68
Versions:
No display
Display with simple keypad
Display with full DTMF keypad


Digital voice recorder
The F3400D series can record incoming and outgoing communications, and replay recorded communications. Add a 32GB microSD card and record up to 500 hours. The recorded audio is saved in “wav” format and allows user to replay on the radio or a PC. Users can optionally overwrite first call in first call out, if the card is full. The recording captures timestamp and individual or group ID. Unit ID is captured on individually calls and group ID is captured on group calls. Users can also scroll to playback calls on the radio.

Safety features
For emergency situations the F3400D series includes an emergency button and five emergency functions: man down, motion detection, stationary detection, lone worker and power OFF emergency. The motion/stationary sensor sensitivity level is programmable in 10 levels for each function.
