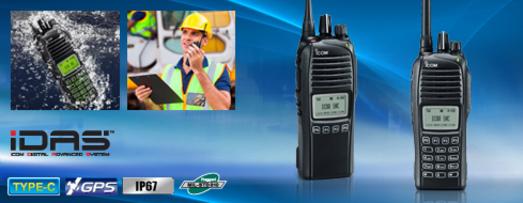

IDAS™ Type-C Trunking Portables VHF/UHF
Type-C Trunking Compatible
The IC-F3360D series provides NXDN™ Type-C trunking and NXDN™ conventional systems.
- Paging Call
- All call
- Individual call
- Text message
- Stun, Kill and Revive (RX)
- Over-the-air alias
- 15-bit digital scrambler
- Mixed mode operation (Conventional system)
- Broadcast call
- Group call
- Status call
- Emergency call
- Radio check (RX)
- GPS
- RAN
Menu-driven user interface
The menu-driven user interface provides easy and intuitive operation. The functions can be toggled with the left and right [P2] and [P3] buttons and allow you to perform various operations and settings.
Ready for NXDN™ Type-C Trunking with Superior Waterproof Protection
Features
General
Frequency coverage (MHz)
IC-F3360DT/DS
136–174MHz IC-F4360DT/DS
400-470MHz (USA
Number of channels 512 channels/128 zones
Type of emissions 8K50F3E, 8K30F1E/F1D, 4K00F1E/F1D
Channel spacing 15/12.5/6.25kHz
Power supply requirement 7.5V DC nominal
Current drain
TX High
RX Max. auidio/ Sandby
IC-F3360DT/DS
1.5A
550mA / 140mA IC-F4360DT/DS
1.8A
550mA / 140mA
Antenna impedance 50Ω
Operating temperature range -30°C to 60°C; –22°F to +140°F (radio specifications)
Dimensions (W×H×D)
(Projections not included) 53.5×142.7×39.5 mm; 2.11×5.62×1.56 in (With BP-232WP)
Weight 400g; 14.1oz (With BP-232WP, MB-94R & FA-SC57U)
Applicable U.S. Military Specifications & IP Rating
Icom makes rugged products that meet MIL-STD requirements and strict environmental standards as follows.
Standard MIL 810 G
Method Proc
Low Pressure 500.5 I, II
High Temp. 501.5 I, II
Low Temp. 502.5 I, II
Temp. Shock 503.5 I-C
Solar Radiation 505.5 I
Rain Blowing/Drip 506.5 I, III
Humidity 507.5 II
Salt Fog 509.5 –
Dust Blowing 510.5 I
Immersion 512.5 I
Vibration 514.6 I
Shock 516.6 I, IV
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Ingress Protection Standard (IC-F3360D/F4360D, BP-232WP and HM-184)
Dust & Water IP67 (Dust-tight and waterproof protection)
Transmitter
Output power 5W, 1W (Hi, Low)
Max. frequency deviation ±2.5kHz (Narrow)
Frequency stability ±1.0ppm
Spurious emissions 75dB typ.
FM hum and noise IC-F3360DT/DS
50dB typ. (Narrow) IC-F4360DT/DS
45dB typ. (Narrow)
AAudio harmonic distortion 1.5% typ. (AF 1kHz 40% deviation)
FSK error 1% typ. (Digital 6.25/12.5kHz)
Ext. microphone connector 14-pin multi-connector/2.2kΩ
Receiver
Sensitivity
Analog
Digitlal
0.24μV typ. (at 12dB SINAD)
–8.0dBμV emf typ. (at 5% BER)
Adjacent channel selectivity 68/67/59dB typ. (Narrow/D 12.5kHz/D 6.25kHz)
Spurious response 80dB min.
Intermodulation 75/70/70dB typ. (Narrow/D 12.5kHz/D 6.25kHz)
Hum and noise IC-F3360DT/DS
50dB typ. (Narrow) IC-F4360DT/DS
48dB typ. (Narrow)
Ext. speaker connector 14-pin multi-connector/8Ω
Audio output power (at 5% distortion) 800mW typ. (Internal SP, 12Ω load)
1000mW typ. (External SP, 8Ω load)
Measurements made in accordance with TIA-603, EN 301-166 and EN 300-113. All stated
specifications are subject to change without notice or obligation.
built-in GPS receiver
Your current position data can be attached to a voice or data (status or emergency signal) transmission and can be sentto dispatch stations.
Man down & lone worker
The man down function sends an emergency signal if left in a horizontal position. The lone worker function detects if the transceiver is not operated or not moved for a preset period.
Transparent data
When IC-F3360D series is connected to a PC or other external equipment, the transparent data function allows data communication in a digital mode.
IP67 dust-tight & waterproof
The IC-F3360D series provides rugged protection against dust and water. The transceiver can with stand 1m depth of water for 30 minutes.
800mW (typ.) audio output
The built-in BTL amplifier doubles the audio output power and the large 40mm speaker delivers loud 800mW (typ.) audio to receive all calls under noisy environments.
Other features
512 memory channels with 128 zones
CTCSS/DTCS/DTMF encoder/decoder*
MDC 1200 PTT ID transmission*
Inversion voice scrambler*
Audio compander*
*Analog mode only May vary depending on version.
