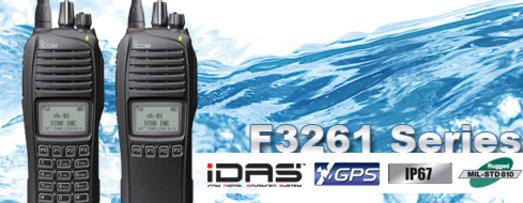

IC-F3261D
General
Frequency Coverage IC-F3261DT/DS: 136–174MHz
IC-F4261DT/DS: 350-400MHz, 400-470MHz, 450-512MHz
Number of channels 512 channels / 128 zones
Type of emission 11K0F3E / 4K00F1E / F1D
Channel spacing 12.5 / 6.25kHz
Power supply requirement 7.5VDC nominal
Current drain (approx.)
Tx High
Rx Max. audio/Standby IC-F3261DT / DS
1.5A (at 5W)
600mA / 150mA IC-F4261DT / DS
1.8A (at 5W)
600mA / 140mA
Antenna impedance 50Ω
Operating temperature range –30°C to +60°C
–22°F to +140°F
Dimensions (with BP-232N)
(projections are not included) 54 (W) ×142.7 (H) ×39.5 (D) mm; 2.13x5.62x1.56in.
(With BP-232WP)
Weight (approx.) 370g; 13.1oz (with BP-232WP)
All trademarks are the properties of their respective holders
Transmitter
Output power 5W, 2W, 1W, (Hi, L2, L1)
Max. frequency deviation ±2.5 kHz
Frequency stability ±1.0ppm
Spurious emissions 75dB min.
FM Hum and Noise 40dB typ.
Audio harmonic distortion 3% typ. (AF 1kHz 40% deviation)
FSK error 5% max.
External microphone connector 2.2kΩ (14-pin multi-connector)
Receiver
Sensitivity Analog: 0.25μV typ. (at 12dB SINAD)
Digital: 0.20μV typ. (at 5% BER)
Adjacent channel selectivity 68dB typ.
Spurious response rejection 70dB min.
Intermodulation rejection 74dB typ.
Hum and noise ratio 40db typ.
Audio output power 800mW typ.
(at 5% distortion with an 8Ω load)
External speaker connector 14-pin multi-connector/8Ω
Measurements made in accordance with EIA/TIA-603.
Ingress Protection Standard: Dust and water – IP67 (dust-protection and water resistant)
All stated specifications are subject to change without notice or obligation.
Analog, LTR®, IDAS Portables VHF/UHF
The following IDAS features are programmable.
Individual/group call
Talk back and call mode selection
SDM (Short Data Message)
Status message
GPS
Radio check
Stun, kill and revive
Call alert
Remote monitor
Emergency
Digital voice scrambler
Block decode
RAN (Radio Access Number)
Analog FM mode features
2-Tone, 5-Tone, CTCSS and DTCS
MDC 1200 compatible
Inversion type voice scrambler
Basic LTR™ trunking
Other features
512 memory channels with 128 zones
Large 2300mAh (typ.) Lithium-Ion battery
Mode dependent scan and priority scan
Optional waterproof speaker-mic, HM-184
Busy channel lockout, repeater lockout
14-pin accessory connector
Escalating alarm
Dot-matrix, multi-function display
MIL-STD 810 G rugged construction
DTMF autodial
Power on password
Low battery alert
Time-out-timer
Surveillance function
Talk around function
Specifications
800mW audio output power
The built-in BTL amplifier doubles the audio output power and the large 40mm speaker delivers loud audio to receive all calls under noisy environments. Even when using an optional speaker-microphone, the BTL amplifier output increases the audio output from the external accessory connector.
IP67 dust-tight & waterproof protection
The IC-F3261D series provides rugged protection against dust and water that is equivalent to IP67. The IC-F3261D series can withstand 1m depth of water for 30 minutes and its dust-tight construction shuts out powder dust, sand and other objects.
Built-in GPS
The built-in GPS receiver* offers a position reporting function which sends your current position information to other IDAS radios or dispatch stations at regular intervals or preprogrammed timing.
* Available on specific versions.
Man down and lone worker functions for emergency calls
The man down function* automatically sends an emergency signal when the transceiver is left in a horizontal position for a preset period. The lone worker function also can transmit an emergency signal when the radio is not operated for a preset period. These emergency functions can be used to alert your co-workers or dispatcher to any potential trouble.
* Available on specific versions.
IDASTM features
The IC-F3261D series provides NXDN™ CAI-based IDAS digital mode operation. It is also compatible with NXDN™ Type-D multi-site and single-site trunking.
