General
Frequency coverage
IC-F3230D  136–174 MHz
IC-F4230D  350–400, 400–470 450–512
Number of channels    128 channels/8 zones
Type of emission    16K0F3E* / 11K0F3E / 8K50F3E / 4K00F1E /F1D
Channel spacing    25* / 15 / 12.5 / 6.25 kHz
Power supply requirement    7.5V DC nominal
Current drain
  Tx High
  Rx Max. audio
       Standby
F3230D
1.3A
400mA
100mA    F4230D
1.3A
400mA
100mA
Antenna impedance    5OΩ
Operating temperature range
-30°C to +60°C; -22°F to +140°F (radio specifications)
Dimensions (proj. not included)    53×120×37 mm; 2.09×4.72×1.46 in (With BP-232WP)
Weight    340g; 12oz (With MB-94R, BP-232WP & antenna)

Applicable U.S. Military Specifications and IP Rating
Standard    MIL 810G
Method    Proc
Low Pressure    500.5    I, II
High Temp.    501.5    I, II
Low Temp.    502.5    I, II
Temp. Shock    503.5    I-C
Solar Radiation    505.5    I
Rain Blowing / Drip    506.5    I, III
Humidity    507.5    II
Salt Fog    509.5    –
Dust Blowing    510.5    I
Immersion    512.5    I
Vibration    514.6    I
Shock    516.6    I, IV
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Ingress Protection Standard (IC-F3230DT/DS, F4230DT/DS with BP-232WP)
  Dust and water – IP67 (dust-right and waterproof protection)

All stated specifications are subject to change without notice or obligation.

Transmitter
Output power (at 7.5V DC)    F3230D: 5W, 2W, 1W (hi, L2, L1)
F4230D: 4W, 2W, 1W (Hi, L2, L1)
Max. frequency deviation    ±5.0 kHz (wide)
±2.5 kHz (narrow)
Frequency stability
±1.0ppm
Spurious emissions    F3230D: 75dB typ.
F4230D: 75dB typ.
FM Hum and noise    F3230D: 52 / 46dB typ. (W/N)
F4230D: 46 / 40dB typ. (W/N)
Audio harmonic distortion
1.0 / 2.0% typ. (AF 1kHz 40% deviation, W/N)
FSK Error
2% typ.
External microphone connector    3-conductor 2.5 (d) mm (1⁄10")⁄2.2Ω

Receiver
Sensitivity
(at 12dB SINAD)
(at 5% BER)
F3230D
0.23μV typ.
0.18μV typ.    F4230D
0.24μV typ.
0.18μV typ.
Adjacent channel selectivity    F3230D: 77 / 71 / 58dB typ. (W/N/D)
F4230D: 74 / 67 / 58dB typ. (W/N/D)
Spurious response rejection    F3230D: 90dB typ.
F4230D: 80dB typ.
Intermodulation rejection    F3230D: 75 / 75/70dB typ. (W/N/D)
F4230D: 76 / 76/72dB typ. (W/N/D)
Hum and noise    F3230D: 48 / 42dB typ. (W/N)
F4230D: 46 / 40dB typ. (W/N)
Audio output power (at 5% distortion)
Internal SP (with 12Ω load)
ExExternal SP (With 8Ω load)    1000mW typ. (Internal SP, 8Ω load)
400mW typ. (External SP, 8Ω load)
External speaker connector    2-conductor 3.5 (d) mm (1⁄8")") ⁄ 8Ω
Measurements made in accordance with EIA/TIA-603.
All stated specifications are subject to change without notice or obligation.
* 25kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions. Ask your dealer if you need 25kHz bandwidth.

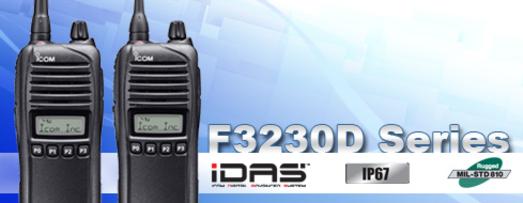

IC-F3230D / IC-F4230D

  Specifications

IDAS™ Trunking Portables VHF/UHF

  IDAS™ Multi-site Trunking Radio with Superior Waterproof Protection

  Features

IDAS™ digital mode operation
The IC-F3230D series provides NXDN™ CAI-based IDAS digital mode operation. It is compatible with IDAS multi-site and single-site trunking and IDAS multi-site conventional.

IP67 waterproof and dust-tight protection
The IC-F3230D series provides outstanding protection against water and dust equivalent to IP67. The IC-F3230D series can withstand 1m depth of water for 30 minutes and its dust-tight construction prevents the ingress of powder dust, sand, mud and other objects.

Easy to hear in noisy areas
The built-in bridge-tied load (BTL) amplifier delivers a powerful 1000mW* audio output from the large speaker. In addition, the digital modulation provides distinct clarity even at the fringes of the communication range.
* Typical with internal speaker

Channel announcement
When you change the operating channel, the radio announces the channel number. Convenient for making radio adjustments without having to look at the radio.

8-character LCD
An 8-character alphanumeric LCD with user-friendly icons shows a variety of information and operating status such as caller's name, received message, etc.

Roaming scan
In the multi-site trunking mode, if the signal condition worsens as the radio user moves, the roaming scan automatically finds a new site to retain the communication link and quality.




IDAS™ digital mode features
In the multi-site trunking mode, if the signal condition worsens as the radio user moves, the roaming scan automatically finds a new site to retain the communication link and quality.
PTT ID and ANI
Status
Radio check (RX)
Call alert
Emergency
ATB (All Trunks Busy) ring back
SDM (Short Data Message)
RAN (Radio Access Number)
Stun/kill/revive (RX)
Remote monitor (RX)
Digital voice scrambler

*TX: Transmit, RX: Receive

Other features
CTCSS/DTCS encode/decoder*
Up to 128 memory channel with 8 zones
Optional HM-HMHD717WP, waterproof speaker-mic
Low battery alert
Voting scan
Talk around function
Surveillance function
2-step power save
Time out timer
Lone worker function
Forced narrow function*

*Analog mode only.
Note: IC-F3230DT/F4230DT is NOT available in some countries. (Not available in the USA.)
