Features
General
Frequency coverage
IC-F3011 136-174 MHz
IC-F4011 400-470 MHz 450-512 MHz
Number of channels 16 channels
Channel spacing 12.5 KHz, 15/30 kHz
PLL channel step 2.5 kHz, 3.125 kHz (VHF)
5 kHz, 6.25 kHz (UHF)
Power supply requirement 7.2V DC
Antenna impedance 50OΩ
Operating temperature range
-30°C to +60°C; -22°F to +140°F
Current drain
Tx High (VHF) 1.5A
High (UHF) 1.6A
Rx Max. audio 300mA
Standby 70mA
Dimensions
(proj. not included) 53(W) × 120(H) × 38(D) mm
Weight 300g; 10.6oz (with BP-232H)
Applicable U.S. Military Specifications and IP Rating
Standard MIL 810 F
Method Proc
Low Pressure 500.4 I, II
High Temp. 501.4 I, II
Low Temp. 502.4-3 I, II
Temp. Shock 503.4 I
Solar Radiation 505.4 I
Rain 506.4 I, II
Humidity 507.4 –
Salt Fog 509.4 –
Dust Blowing 510.4 I
Vibration 514.5 I
Shock 516.5 I, V
All stated specifications are subject to change without notice or obligation.
Supplied Accessories
Battery pack:BP-232N
Antenna
Belt clip: MB-94
Battery charger*, AC adapter*
* Depending on version
Transmitter
FM Hum and noise 46/40dB typ. (W/N)
Output power (at 7.2V DC) 5W (VHF), 4W (UHF)
Adjacent channel power
VHF
UHF 80/70dB typ.
75/68dB typ.
Max. frequency deviation ±5.0 kHz (at 25 kHz)
±2.5 kHz (at 12.5 kHz)
Frequency stability
±2.5ppm
Spurious emissions 80dBc typ.
Adjacent channel selectivity 75/65dB typ. (W/N)
Receiver
Sensitivity 0.25 µV (typ.) at 12 dB SINAD
Intermodulation rejection 74dB typ.
Squelch sensitivity 0.25μV typ. (at threshold)
Spurious response rejection 70 dB (typ.)
Hum and noise
VHF
UHF 50/45dB typ. (W/N)
45/40dB typ. (W/N)
Audio output power (at 7.2V DC) 500mW (typical at 5% distortion with an 8Ω load)
External speaker connector 2-conductor 3.5 (d) mm (1⁄8")⁄8Ω
Measurements made in accordance with EAIA-152-C/204D or TIA-603.

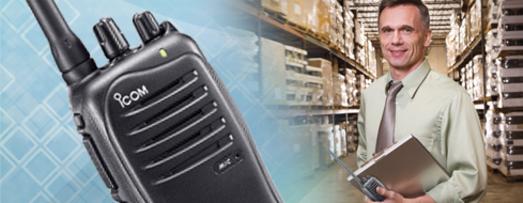

Entry Level Analog Portable Radio VHF/UHF
IC-F3011 / IC-F4011
Simple operation for instant communication
With only 3 buttons, one volume knob and one 16-position channel knob, the IC-F3011 series does not require special training to use. The large knobs and positive action buttons are easy-to-operate, even while wearing gloves.
Modern design, rugged body
The IC-F3011 series is compact (120mm; 4 23⁄32 inch height) and light weight (approximate 300g; 10.6 oz with BP-232N and antenna). The aluminum die-cast chassis is the basis for this rugged construction, allowing long-life usage in various environments.
MIL-STD and IP54 rugged construction
The radio is tested to MIL-STD 810 specifications and to the IP54 rating for dust protection and water resistance. The IC-F3011 series is built to take harsh use and keep working.
Lithium-Ion battery standard
The IC-F3011 series comes with a high capacity 2000mAh (typ.) Li-Ion battery pack, BP-232N, as standard. The BP-232N offers up to 16 hours* of operation
* VHF typical operation with Tx:RX:Stand-by ratio=5:5:90.
CTCSS/DTCS tone encoder/decoder
The IC-F3011 series has the built-in CTCSS and DTCS capabilities as standard to access a repeater or to set up your own talk group for quiet stand-by.
Rapid battery charger supplied
The rapid desktop charger, BC-160 and AC adapter BC-145 is supplied with the radio. It charges the BP-232N Li-Ion battery in 3 hours (approx.)
Automatic scanning and priority scan
The power on scan function automatically starts scanning when turning on the radio. The priority scan function scans all programmed channels in sequence, while monitoring the priority channel.
Other features
Low battery alert with blinking LED and low battery beep
Wide frequency coverage (136-174, 400-470 and 450-512MHz)
PC Programming capability
3-color LED (Red, Green, Orange)
Talk around function
time out timer
Optional VOX headset
2-step power save
