Features
Built-in signaling
The F1000 series comes all the popular signaling including 2-Tone, 5-Tone, CTCSS and DTCS for group communication and selective calling.
MDC features are also programmable including:
PTT ID
Emergency (No ACK transmission)
Radio check (RX only)
Stun/Revive (RX only)
Transmit status messages (LCD types only)
100 alias table (LCD types only)
Additional features
Built-in voice scrambler
Channel announcement
8 DTMF autodial memories
"Shift key" function increases number of programmable key assignments
Surveillance function
Escalating alarm
Versions:
No display
Display with simple keypad
Display with full DTMF keypad
General
Frequency coverage (MHz)
F1000/S/T
136–174MHz F2000/S/T
400-470MHz
450-512MHz
Number of channels F1000
16 channels
F1000S/T
128 F2000
16 channels
F2000S/T
128
Type of emissions 16K0F3E*/11K0F3E
Channel spacing 12.5/25kHz (Not USA Version)
Power supply requirement 7.5V DC nominal
Current drain
TX High
RX Max. auidio/ Sandby
F1000/S/T
1.3A
330mA (Internals SP) / 77mA F2000/S/T
1.3A
300mA (Internal SP) / 80mA
Antenna impedance 50Ω
Operating temperature range -30°C to 60°C; –22°F to +140°F (radio only)
Dimensions (W×H×D)
(Projections not included) 52.2×111.5×24.5mm; 2.06×4.39×0.96 in (With BP-279)
Weight 240g; 8.47oz (With BP-279)
Applicable U.S. Military Specifications
Icom makes rugged products that meet MIL-STD requirements and strict environmental standards as follows.
Standard MIL 810 G
Method Proc
Low Pressure 500.5 I, II
High Temp. 501.5 I, II
Low Temp. 502.5 I, II
Temp. Shock 503.5 I-C
Solar Radiation 505.5 I
Rain Blowing/Drip 506.5 I, III
Humidity 507.5 II
Salt Fog 509.5 –
Dust Blowing 510.5 I
Immersion 512.5 I
Vibration 514.6 I
Shock 516.6 I, IV
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Ingress Protection Standard
Dust & Water IP67 (Dust-tight and waterproof protection)
Transmitter
Output power F1000/S/T
5W, 2W, 1W (Hi, L2, L1) F2000/S/T
4W, 2W, 1W (Hi, L2, L1)
Max. frequency deviation ± 5.0kHz/±2.5kHz (Wide/Narrow)
Frequency stability ±2.5ppm
Spurious emissions 70dB min.
FM hum and noise 46/40dB typ. (Wide/Narrow)
Audio harmonic distortion 1.0%/1.5% typ. (W/N, AF 1kHz 40% deviation)
Ext. microphone connector 2-conductor 3.5 (d) mm (1⁄10")⁄2.2kΩ
Receiver
Sensitivity (at 12dB SINAD) 0.25μV typ.
Adjacent channel selectivity F1000/S/T
76/53dB typ. (W/N) F2000/S/T
73/56dB typ. (W/N)
Spurious response 70dB min.
Intermodulation F1000/S/T
74dB typ. F2000/S/T
73dB typ.
Hum and noise F1000/S/T
51/45dB typ. (W/N) F2000/S/T
49/43dB typ. (W/N)
Ext. speaker connector 2-conductor 3.5 (d) mm (1⁄8")/8Ω
Audio output power (at 5% distortion)
Internal SP (w/12Ω load)
External SP (w/8Ω load)
800mW typ. (at 5% distortion)
400mW typ. (at 5% distortion)
Measurements made in accordance with TIA-603.
All stated specifications are subject to change without notice or obligation.
* 25kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions.
Ask your dealer if you need 25kHz bandwidth.
Supplied accessories
Battery pack, BP-279
Belt clip, MB-133
Antenna FA-SC57U or FA-SC55V

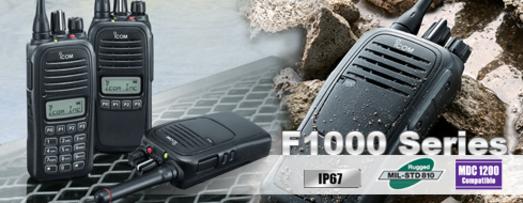

The F1000/F2000 Series is a sleek portable radio that fits nicely in your hand designed to be the go to entry to mid level radio. Three model choices, basic – no display, simple – display with simple keypad, and full – display and fully DTMF keypad, include an array of features such as a built-in motion sensor, channel announcement function, and a rugged waterproof & dustproof chassis. The radio series is ideal to meet the needs of a wide range of businesses such as those involved in the education, hospitality, and retail.
Channels: 16 or 128 channels
Output power: 5W (VHF) / 4W (UHF)
Frequencies: 136-174 MHz
400-470 or 450-512 MHz
Waterproof rating: IP67
Programmable keys: 3 or 7
Built-in motion sensor
With a built-in motion sensor, the F1000 series can detect its position, state of motion and non-motion and can send an emergency signal. The motion function detects if the transceiver is moving or shaking, for example, during a chase. The lone worker and man down functions are programmable.
