Easy to Use, Rugged and Compact with Icom's V Speed Audio!

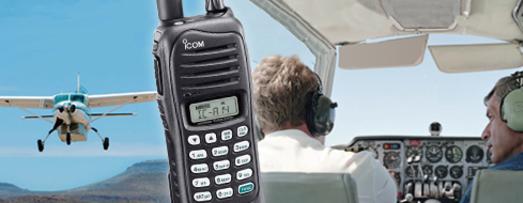

A14 / A14S
Made with the student pilot in mind
The IC-A14 series is the ideal flight companion for the student pilot. This radio practically pays for itself by saving pilots both engine hours and fuel during preflight communications with the tower.
700mW* loud audio
Because air band radios are usually operated in high-noise environments, it is essential for the radio to provide loud and clear audio. The IC-A14/S series employs a BTL amplifier that doubles the audio output, offering loud and clear audio thatll cut through cabin or tarmac noise.
* Internal speaker only
Full keypad type or Simple keypad type
The IC-A14 full keypad type allows you to input the channel or frequency directly and has an exclusive button for the 121.5MHz emergency channel. The IC-14 receives NOAA WX channels when selected. The IC-A14S simple keypad type provides simpler operation with a minimum of buttons that is suitable for ground crews.
Compact, light weight and rugged body
The IC-A14 series is compact (only 120mm tall) and light weight (approx. 350g including antenna and BP-232N). The water resistant construction, equivalent to IPX4, provides reliable operation in wet conditions.
Large capacity Lithium-Ion battery pack
With the 2000mAh large capacity Lithium-Ion battery pack, BP-232N, the IC-A14 series provides stable output power and 18 hours long (approx.) operating time*. The BP-261, battery case takes 6 AA (LR6) alkaline cells for convenient battery backup.
* Typical operation, Tx:Rx: Stand-by=5:5:90.
200 channels with memory banks
A total of 200* memory channels can be named with an 8-character channel name for easy recognition. For fast and simple operation, these channels can be grouped into 10 memory banks*.
* IC-A14 only. The IC-A14S has 100 memory channels and memory banks are not available.
BC-179 holder type battery charger
The battery charger, BC-179, securely holds and charges the radio, even in bumpy conditions. The cigarette lighter cable, CP-22, can be used with the BC-179.
Other outstanding features
- 5W typ. (PEP), 1.5W (CW) output power
- Side tone function allows you to hear your own voice via a third party aviation headset
- LCD backlight for night time operation
- ANL (Auto Noise Limiter) for noise reduction
- Low battery indication and beep alert
- Adjustable microphone gain setting
- BNC type antenna connector
General
Frequency Coverage
IC-A14
Tx (COM)
Rx (COM, NAV)
Rx (Weather)
IC-A14S
Tx/Rx (COM)
118.000-136.975 MHz
108.000-136.975 MHz
161.650-163.275 MHz
118.000-136.975 MHz
Mode
Weather (IC-A14 only) AM (6K00A3E)
FM (16K0G3E)
Channel spacing 25 kHz
No. of memory channels
IC-A14
IC-A14S
200 channels with 10 banks
100 channels
Antenna impedance 50Ω (BNC type)
Power supply requirement 7.4V DC (Icom battery pack)
Current drain (at 7.2 V DC)
Tx
Rx Max. audio
Rx Stand-by
1.5 A typical
500 mA typical
50 mA typical
Operating Temperature Range -10°C to +60°C; -14°F to +140°F
Dimensions (W×H×D)
(projections not included) 53×120×36.9 mm;
23⁄32×423⁄32×17⁄16 in.
Weight (approx.) 350 g; 12.3 oz (with antenna and BP-232N)
Transmitter
Output power (at 7.2 V DC) 5.0/1.5W typ. (PEP/CW)
Modulation limiting 70-100%
Frequency stability ±5ppm
Audio harmonic distortion Less than 10% (at 60% mod.)
Hum and noise ratio More than 35 dB
Spurious emissions More than 46 dB (except operating freq. ±62.5 kHz point)
Microphone impedance 3-conductor 2.5 (d) mm (1⁄10″) / more than 100kΩ
Receiver
Intermediate frequency
1st
2nd
46.35 MHz
450 kHz
Sensitivity (typ)
COM (at 6dB S/N)
NAV (at 6dB S/N)
WX (at 12dB SINAD)
-6dBµ typ.
-3dBµ (IC-A14 only)
-13dBµ (IC-A14 only)
Squelch
AM
FM
Less than 0dBµ
less than -5dBµ
Selectivity More than 7.5 kHz/-6 dB
Less than 25 kHz/-60 dB
Hum and noise More than 35 dB (at 30% mod.)
Spurious response
AM
FM (IC-A14 only)
More than 60 dB
More than 30 dB
Audio output power
Internal speaker
External speaker
More than 700mW
More than 500mW at 10% distortion with an 8Ω load, 30% modulation
Ext. speaker connector 3-conductor 3.5 (d) mm, (1⁄8″) / 8Ω
Applicable U.S. Military Specifications & IP Rating
Standard
MIL 810F
Method Proc.
Low Pressure 500.4 I, II
High Temp. 501.4 I, II
Low Temp. 502.4-3 I, II
Temp. Shock 503.4 I
Solar Radiation 505.4 I
Rain 506.4 I,III
Humidity 507.4 —
Salt Fog 509.4 —
Dust 510.4 I
Vibration 514.4 I
Shock 516.5 I, IV
Also meets equivalent MIL-STD-810-C, -D and -E.
Ingress Protection Standard
Water IPX (Water resistant protection)
Measurement made in accordance with FCC Part 87 for USA versions. All specifications are subject to change without notice or obligation.
Supplied Accessories
- Battery pack, BP-232N or battery case, BP-261*
- Battery charger, BC-179*
- AC adapter, BC-174A/E*
- Belt clip, MB-94
- Antenna, FA-B02AR
- Handstrap
* Depending on version
